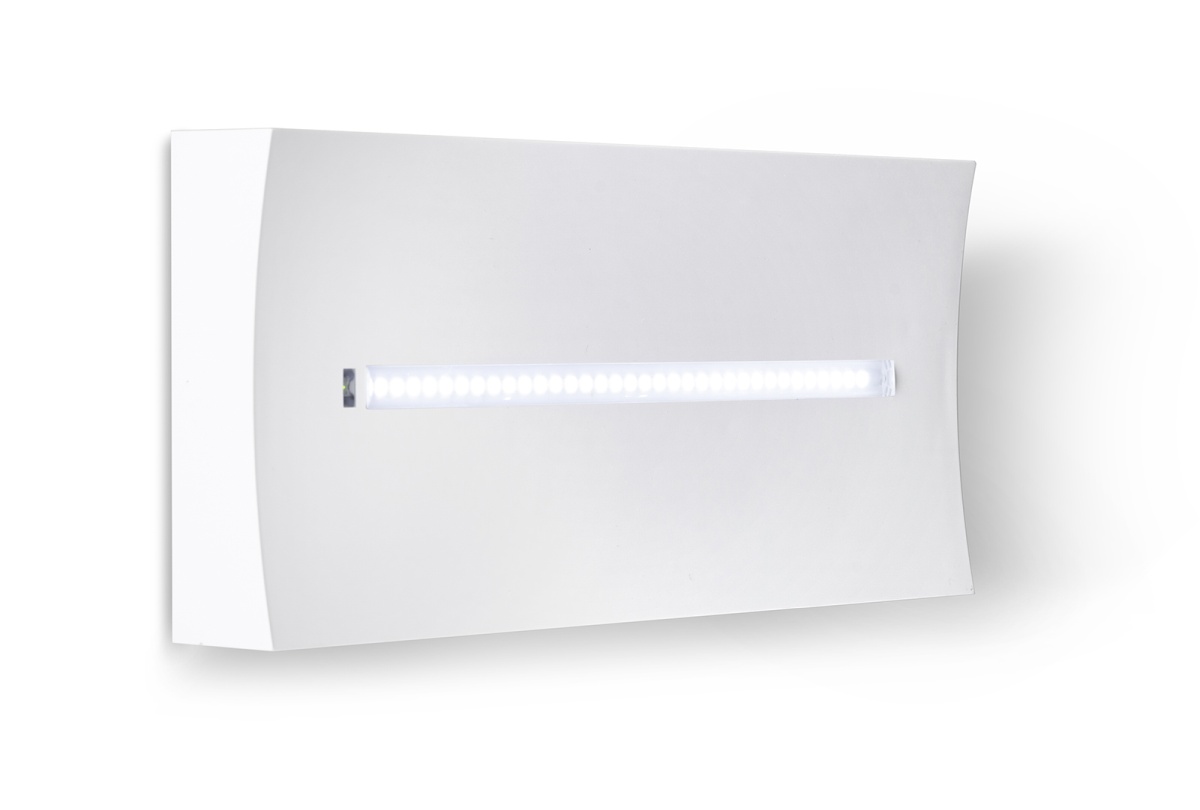

AR2902

AR11F20ABRT-WF

IP65

Technical features

properties
  • Duration: 2h
  • Type: NM/M
  • Function: Connect
  • Input power: 3,7W
  • Avarage flux N/M: 400lm
  • Flux M: 400lm
  • Battery: Li-FePO4 3,2V 3Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

A005

BUSBAR KIT

View

A014

PROTECTIVE GRID

View

A047

KIT FOR FLAG-STYLE FASTENING

View

A092

CLASP FOR FIXING AT 45 DEGREES

View

A310

WHITE ELECTRIFIED TRACK ADAPTER

View

A327

MEDIUM RAIN PROTECTION IN STAINLESS STEEL

View

B102

BATTERY LiFePO4 3,2V 3AH SIZE 18650

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

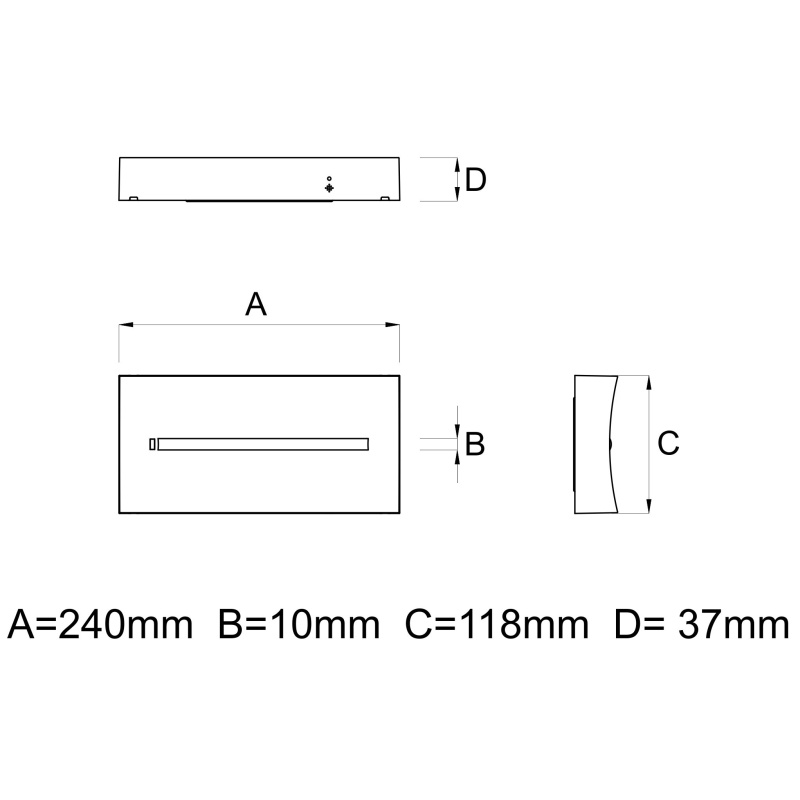

Technical drawing

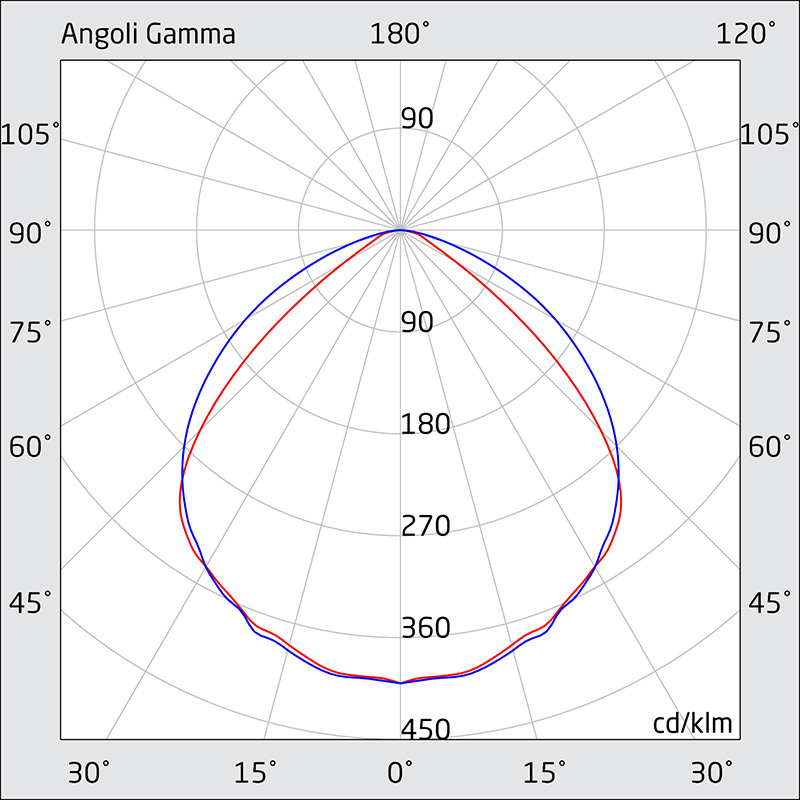

Polar Diagram

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing

Polar Diagram
