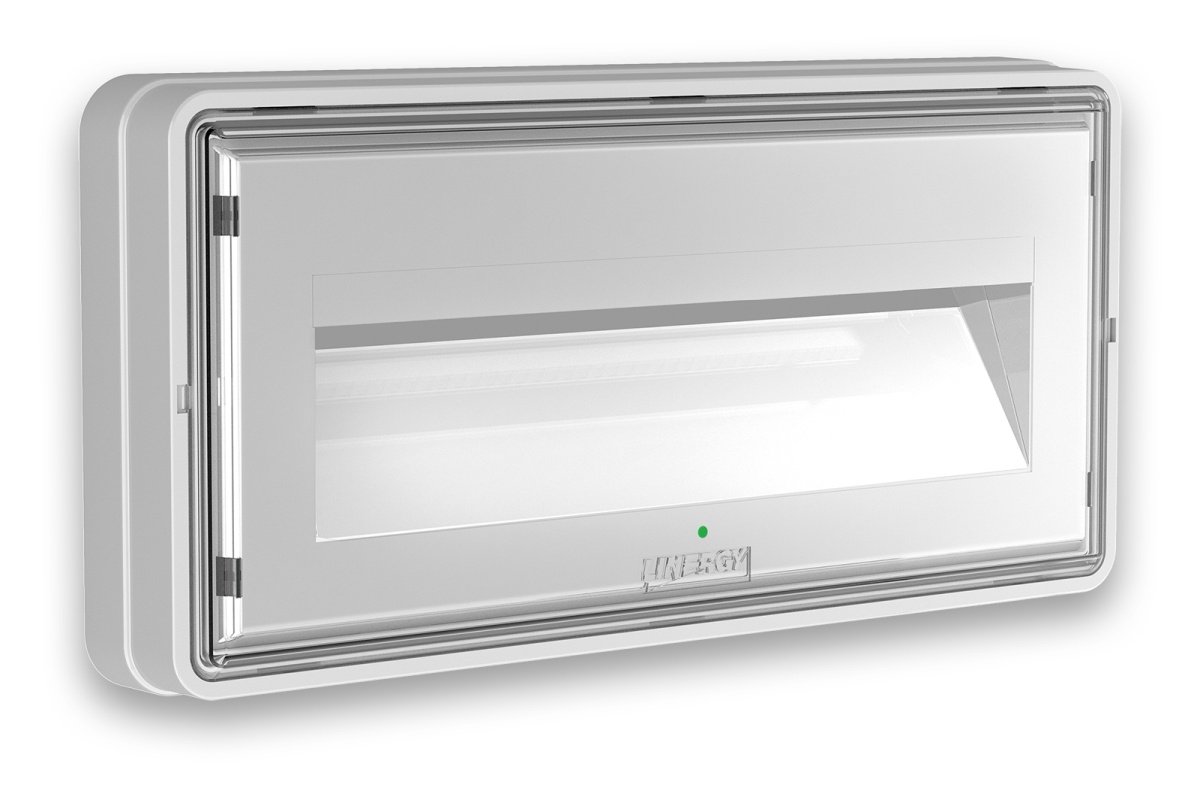

CW1511

CW24N10AGRC

IP65

Technical features

properties
  • Duration: 1h
  • Type: NM/M
  • Function: Spy System
  • Input power: 7,4W
  • Avarage flux N/M: 615lm
  • Flux M: 615lm
  • Battery: Li-FePO4 6,4V 1,5Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

A203

AESTHETIC FRAME FOR CRISTAL

View

A006

PLASTERBOARD AND FALSE CEILING FASTENING KIT

View

A013

PROTECTIVE GRID

View

A019

WALL BOX RECESSED INSTALLATION CRISTAL

View

A328

LARGE RAIN PROTECTION IN STAINLESS STEEL

View

B105

BATTERY LiFePO4 6,4V 1,5AH 3P

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

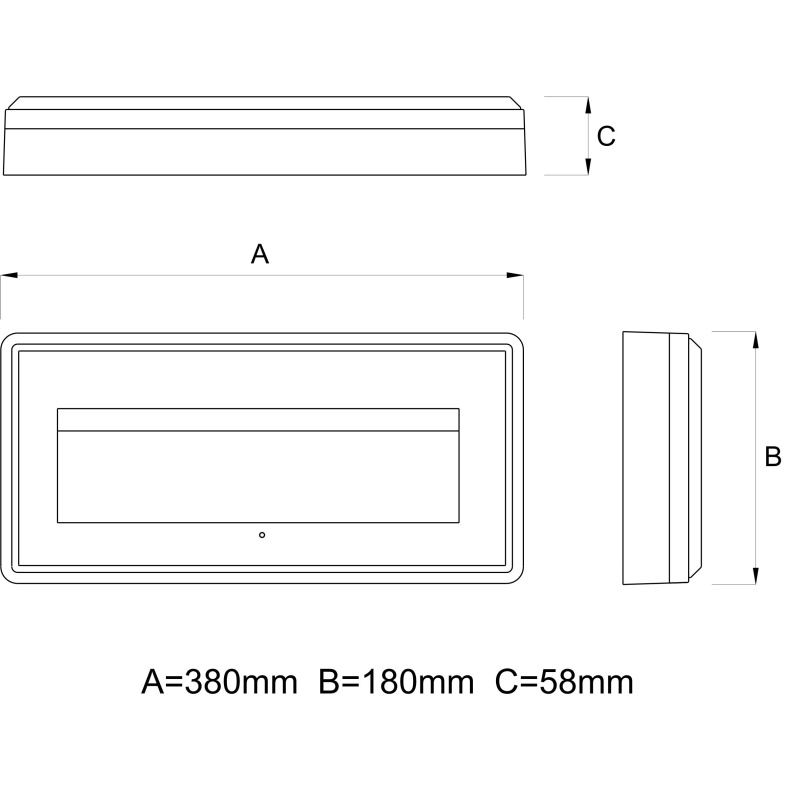

Technical drawing

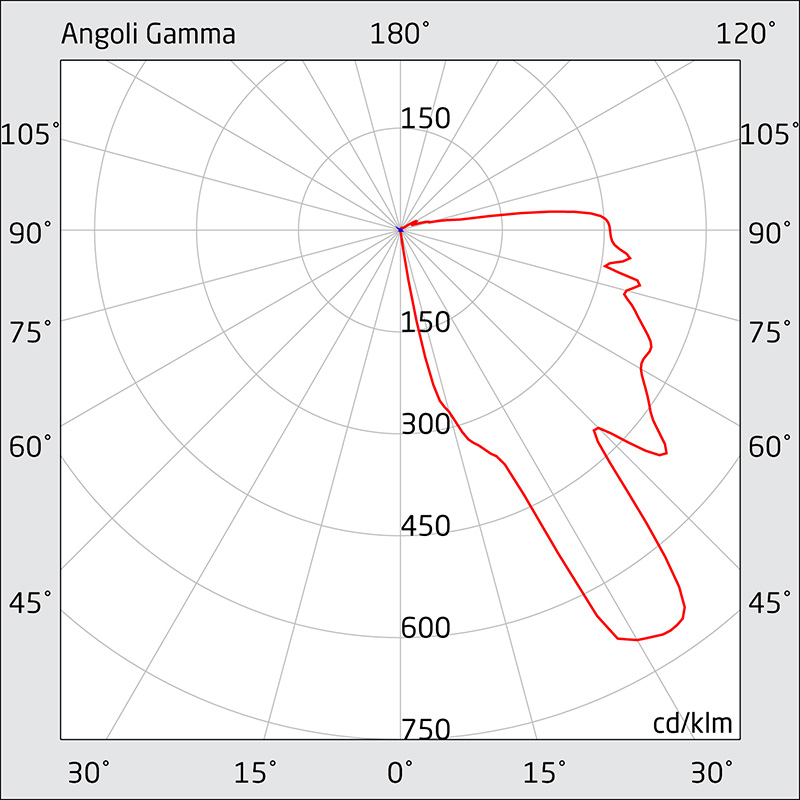

Polar Diagram

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing

Polar Diagram
