ML1203
ML14F10AGR
Technical features
properties
- Duration: 1h
- Type: M
- Function: Rest Mode
- Input power: 14W
- Avarage flux N/M: 445lm
- Flux M: 1340lm
- Diameter: 39 cm
- Colour: Grey
- Battery: Li-FePO4 6,4V 1,5Ah
Item availability
On request
Downloads
-
Datasheet
-
LDT Photometric file
-
Installation distance table
-
EU declaration of conformity
-
2D CAD block
-
BIM file
-
Specifications text
-
Installation instructions
- Download all

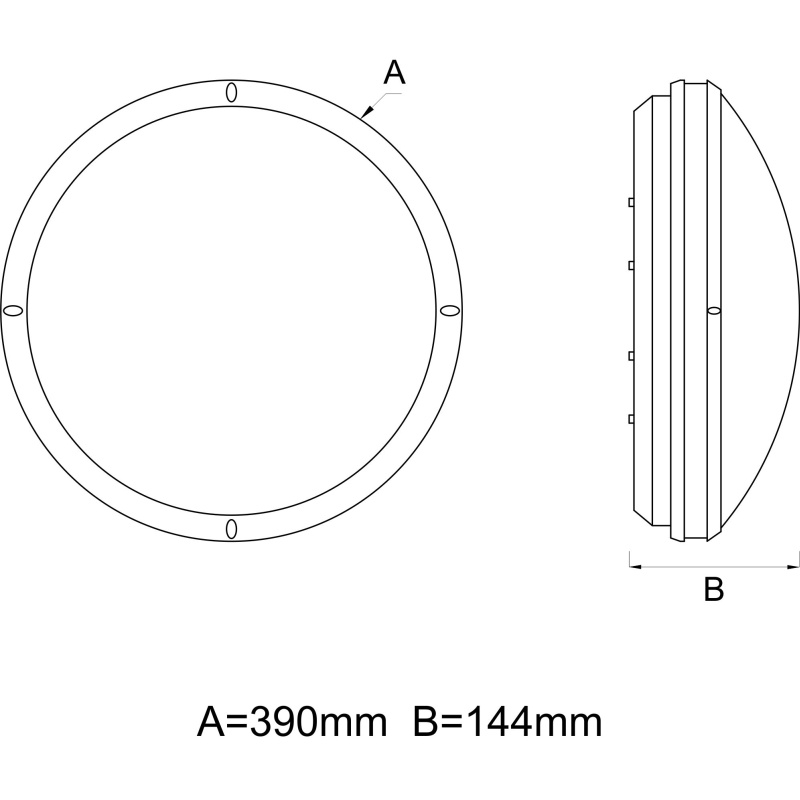

Technical drawing

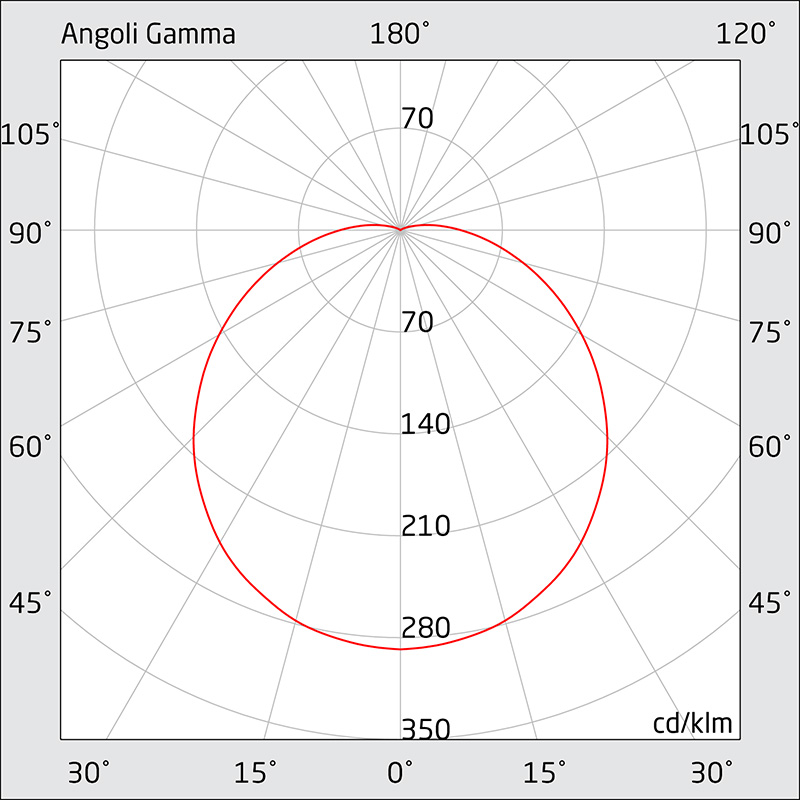

Polar Diagram
