PR1206

PR11F13ABR

IP42
IK08

Technical features

properties
  • Duration: 1,5h
  • Type: NM/M
  • Function: Rest Mode
  • Input power: 2,2W
  • Avarage flux N/M: 175lm
  • Flux M: 160lm
  • Battery: Li-FePO4 3,2V 1,5Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

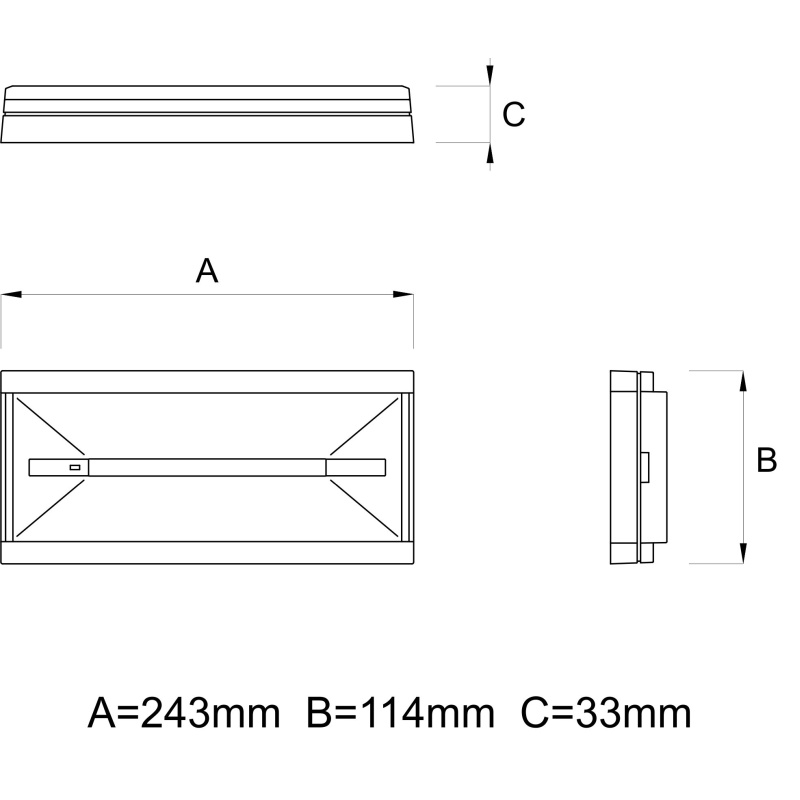

Technical drawing

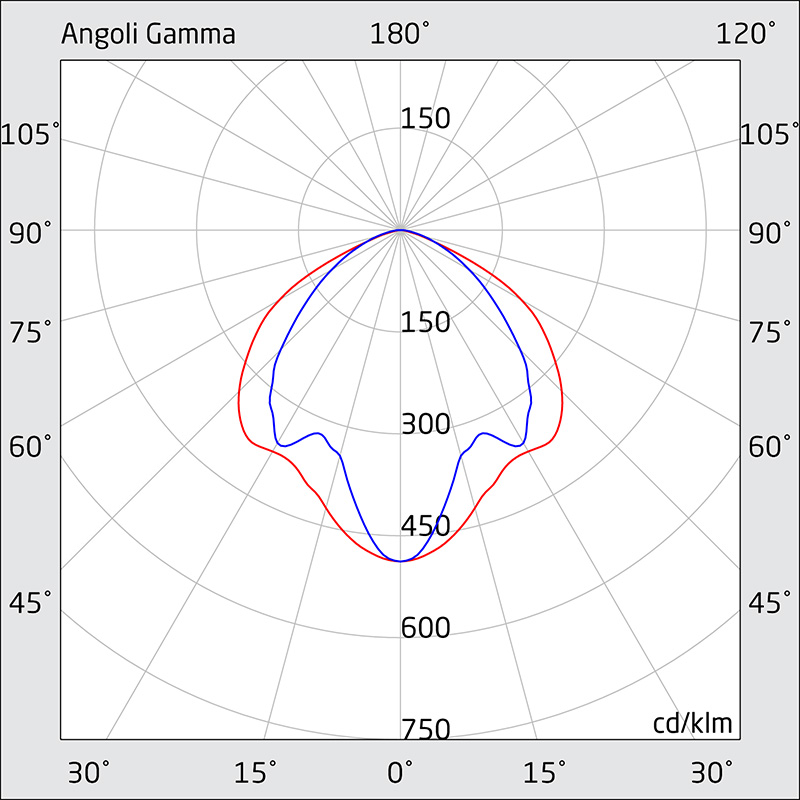

Polar Diagram
