< SPY CENTER 24

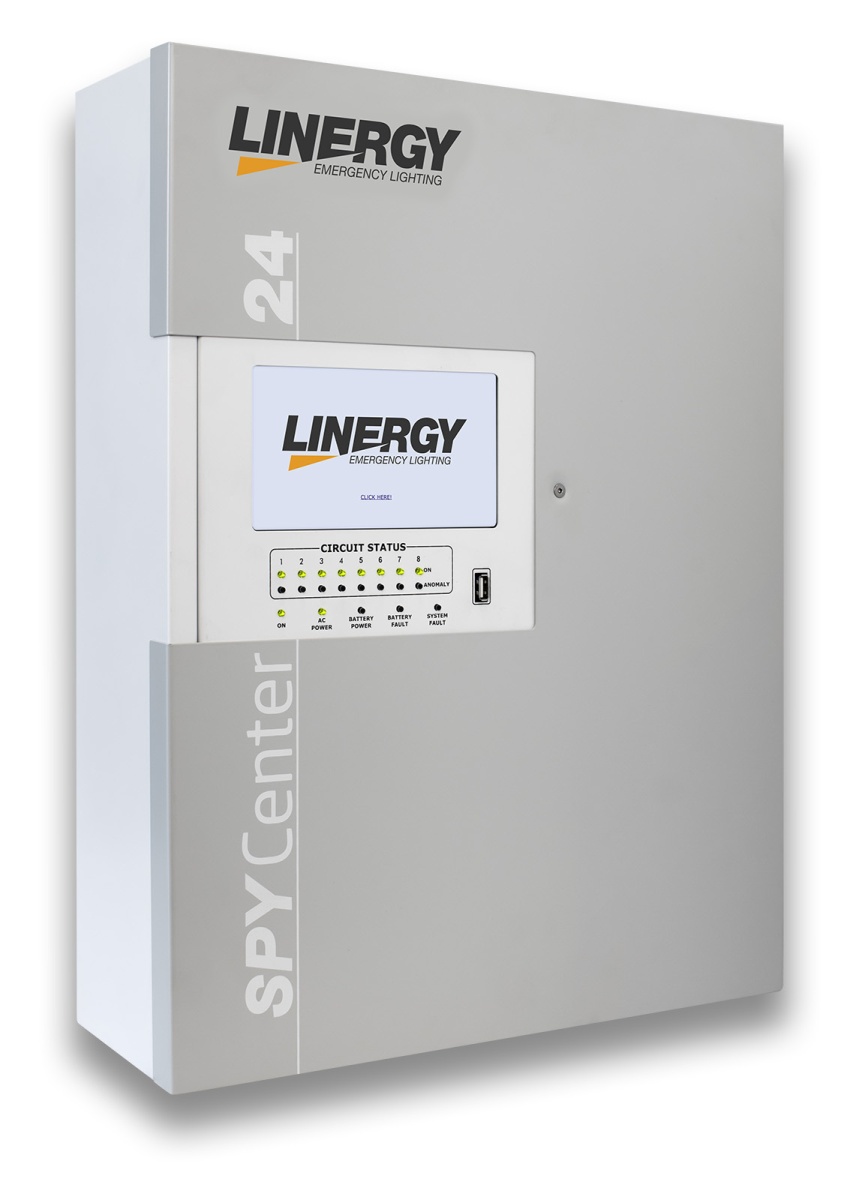

SC1402

SC24V24A4

IP40

Technical features

properties
Item availability
In 5 days
Non-binding indication - shipping time not included
INPUT
  • Type: mono-phase
  • Voltage: 230 Vac, 50-60 Hz
OUTPUT
  • Voltage: 24 Vdc
  • Output circuits: 4
POWER
  • Power: 240 W
  • Duration - Power according to EN 50171:
    1 h - 240 W
    2 h - 160 W
    3 h - 120 W
BATTERIES
  • Type: 2 x Pb 12 V 24 Ah (VRLA AGM with 10-year expected life)
  • Recharge: 80% of capacity reached in 12h
INSTALLATION
  • Type: single cabinet
  • Nr. cabinet: 1
  • Installation: wall mounted

Note: possibility of customized configuration.

A097

EXT. MODULE FOR MONITORING OF THE 1 CHANGE OVER CONT.PHASE

View

A261

INTEGRATED CIRCUIT BOARD

View

A262

MODULE FOR MONITORING INDIVIDUAL EMERGENCY LAMP

View

A274

SW INTERFACE FOR TCP/MODBUS SPY CENTER 24

View

A112

INTERNATIONAL TRAVEL FOR SYSTEM START-UP

View

A113

INTERNATIONAL TRAVEL WITH 1 NIGHT FOR SYSTEM START-UP

View

A272

4H CENTRAL START-UP SERVICE

View

A273

8H CENTRAL START-UP SERVICE

View

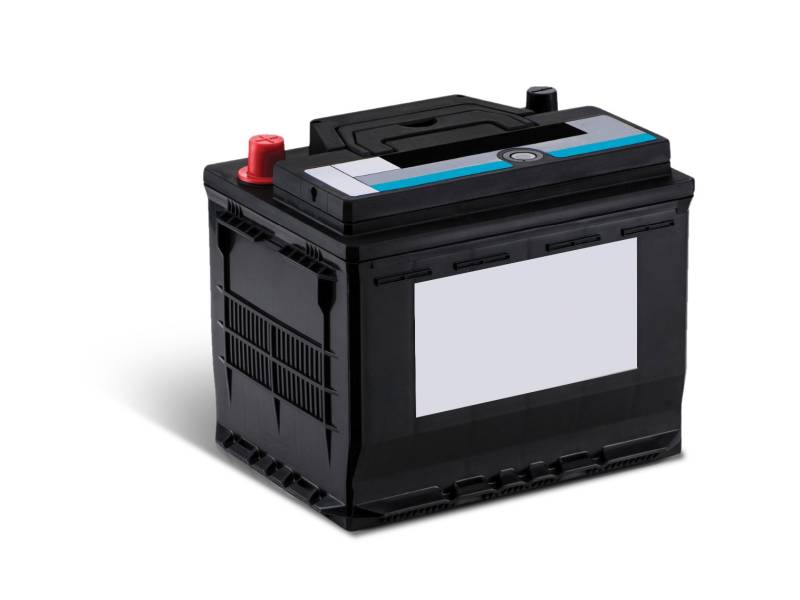

B075

BATTERY LEAD 12V 24AH

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

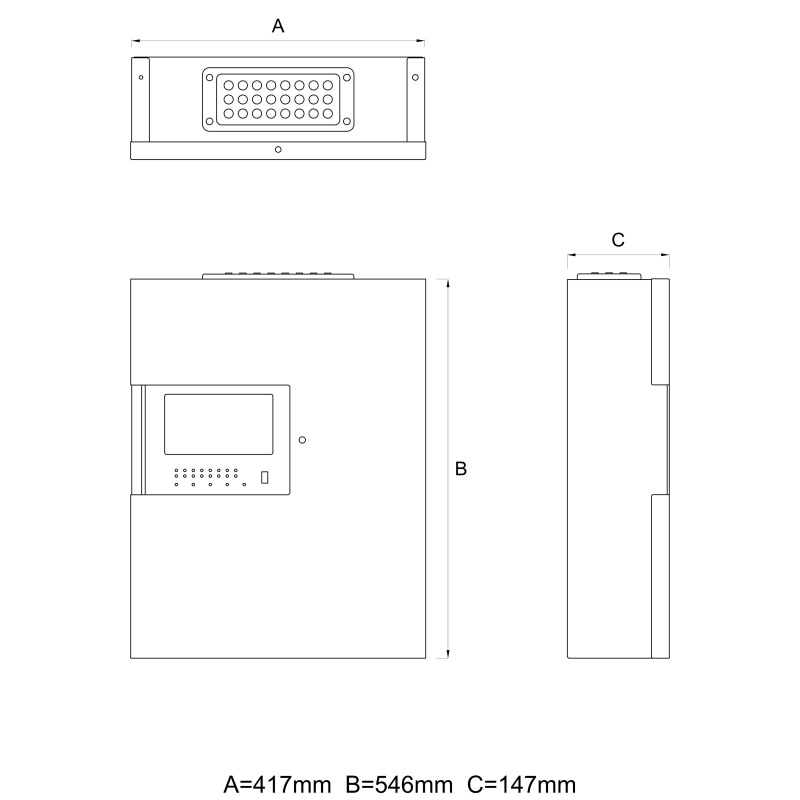

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
