< SPY CENTER BASIC

SC1516

SCB080P10

IP20

Technical features

properties
Item availability
In 5 days
Non-binding indication - shipping time not included
INPUT
  • Type: mono-phase
  • Voltage: 230 Vac, 50-60 Hz
OUTPUT
  • Type: mono-phase
  • Voltage: 230 Vac
  • Output circuits: 3 (NM/M)
POWER
  • Nominal power: 8.000 VA
  • Active power: 8.000 W
  • Power according to EN 50171: 5.300 W
  • Overload: 120%
BATTERIES
  • Type: 16 x Pb 12 V (VRLA AGM with 10-year expected life)
  • Duration: 1 h
  • Recharge: 80% of capacity reached in 12 h
INSTALLATION
  • Type: system + battery
  • Nr. cabinet: 2
  • Installation: floor

Note: upon request Spy Center Basic with TRI-PHASE INPUT/OUTPUT can be sized and produced.

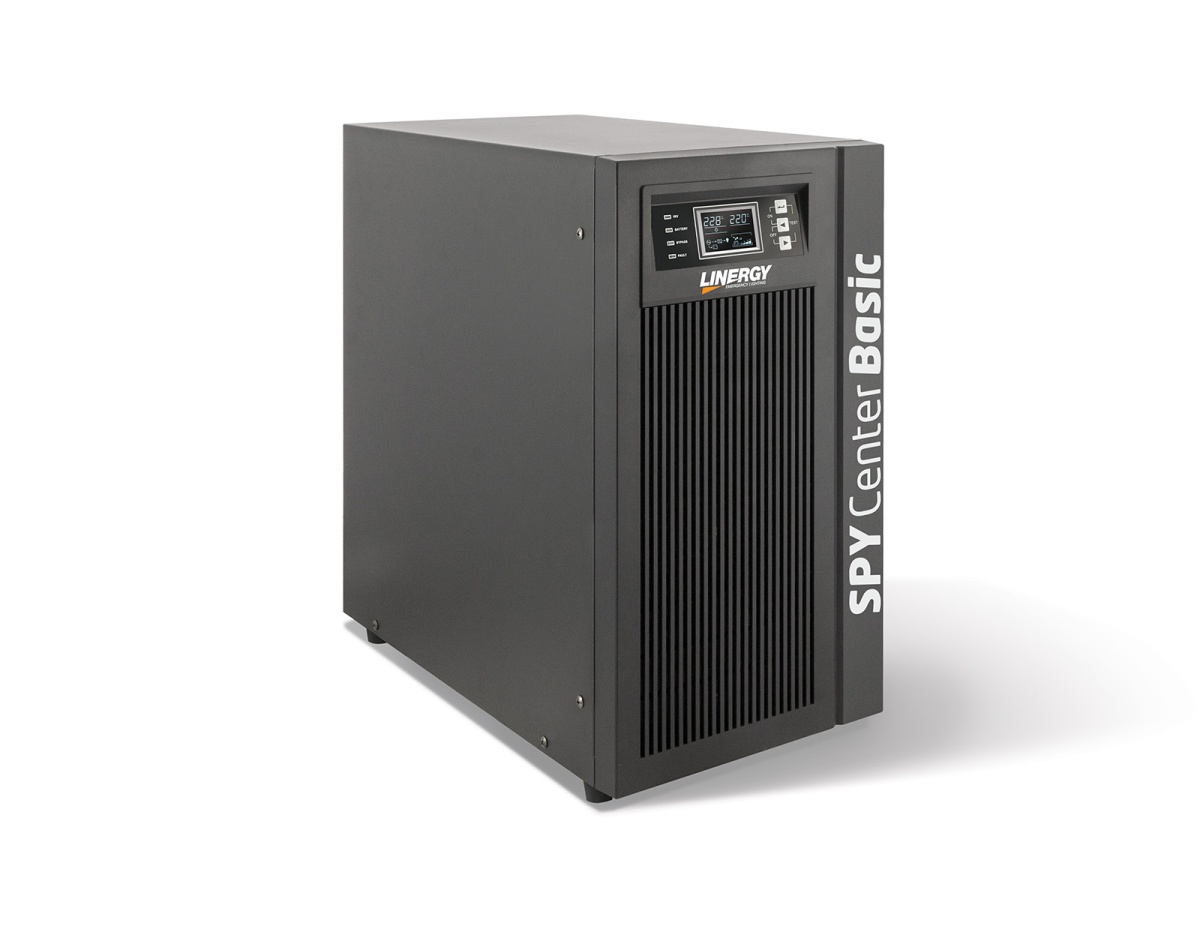

The image of the product is purely indicative as the system may vary depending on the sizing of the installation.

A097

EXT. MODULE FOR MONITORING OF THE 1 CHANGE OVER CONT.PHASE

View

A125

BOARD UPS ONLINE

View

A126

SIGNALLING MODULE BOARD FOR SPY CENTER BASIC

View

A264

EXTERNAL LINES ACTUATOR MODULE

View

A112

INTERNATIONAL TRAVEL FOR SYSTEM START-UP

View

A113

INTERNATIONAL TRAVEL WITH 1 NIGHT FOR SYSTEM START-UP

View

A272

4H CENTRAL START-UP SERVICE

View

A273

8H CENTRAL START-UP SERVICE

View

A292

1 YEAR WARRANTY EXTENSION 1-3 KVA

View

A293

1 YEAR WARRANTY EXTENSION 5-10 KVA

View

A294

3 YEARS WARRANTY EXTENSION 1-3 KVA

View

A295

3 YEARS WARRANTY EXTENSION 5-10 KVA

View

B079

BATTERY LEAD 12V 60AH

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

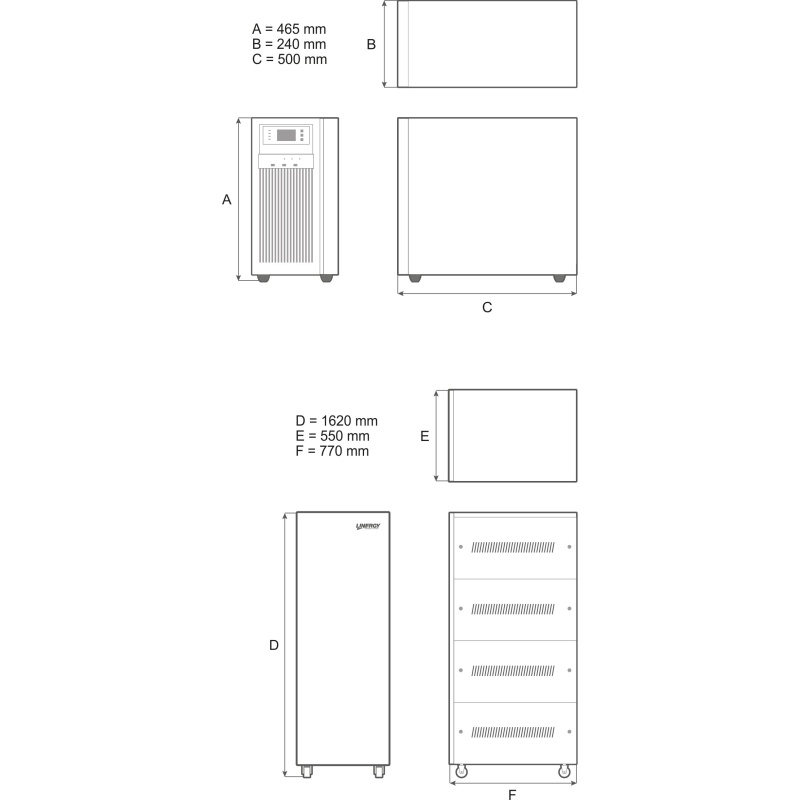

Technical drawing
