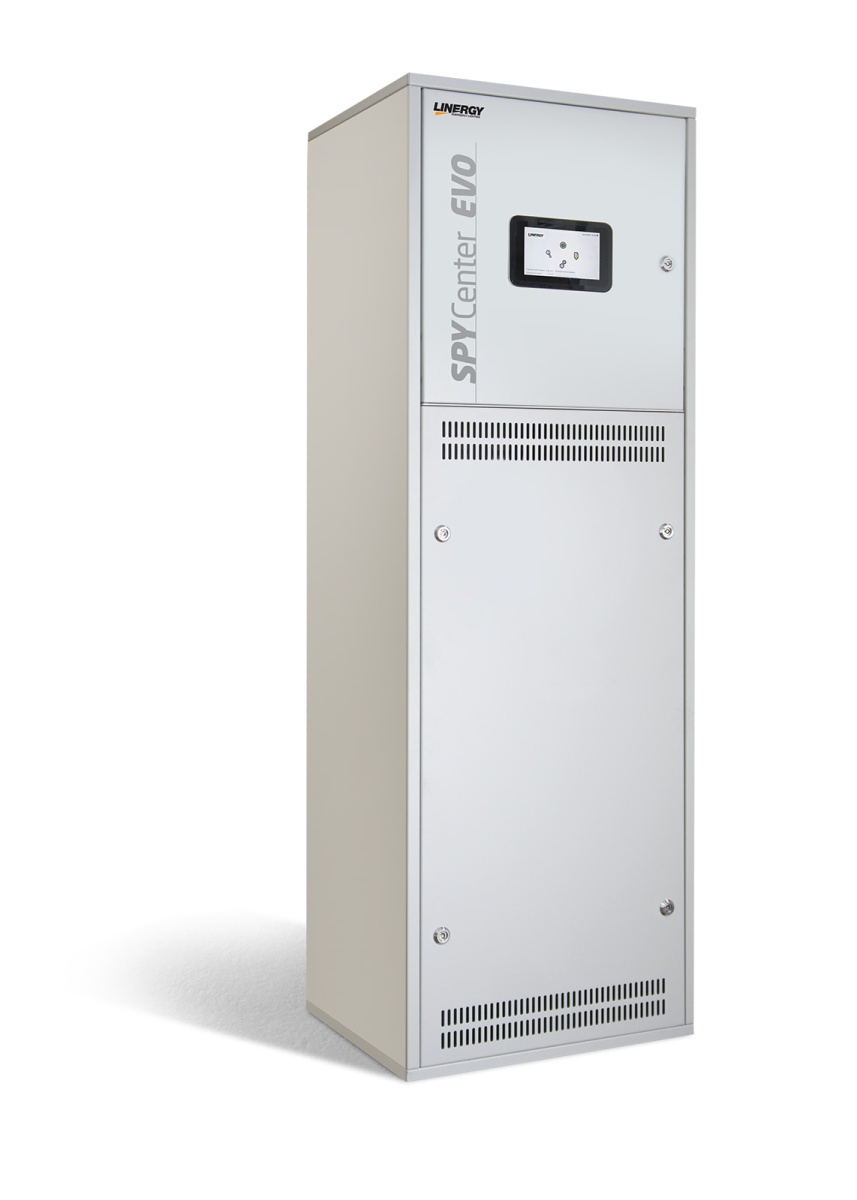

SC1601

SCE100P04

Technical features

properties
Item availability
On request
INPUT
  • Type: three-phase, mono-phase
  • Voltage: 400 Vac 50-60 Hz, 230 Vac 50-60 Hz
OUTPUT
  • Voltage: 216 Vdc (230 Vac with mains)
  • Output circuits: 4
POWER
  • Power: 1.000 W
  • Active power: 1.170 W
  • Duration - Power according to EN 50171:
    1 h - 935 W
    2 h - 395 W
    3 h - 315 W
BATTERIES
  • Type: 18 x Pb 12 V (VRLA AGM with 10-year expected life)
  • Recharge: 80% of capacity reached in 12h
INSTALLATION
  • Type: single cabinet
  • Nr. cabinet: 1
  • Installation: floor

Note: possibility of having a system with customized configuration.

A097

EXT. MODULE FOR MONITORING OF THE 1 CHANGE OVER CONT.PHASE

View

A101

FIREPROOF BRANCH BOX E30

View

A104

MODULE FOR MONITORING INDIVIDUAL EMERGENCY LAMP L

View

A107

E30 FOR EXTERNAL MODULE 125X125X60

View

A108

E30 FOR EXTERNAL MODULE 170X145X70

View

A109

E30 FOR EXTERNAL MODULE 243X168X83

View

A265

AUXILIARY INPUT/OUTPUT MODULE

View

A266

EXTERNAL MODULE FOR LINE MONITORING

View

A267

INTERNAL MODULE FOR LINE MONITORING

View

A271

EXT. MODULE FOR 8-PHASE MONITORING

View

A296

SYNOPTIC PANEL FOR REMOTE SIGNALLING

View

A329

OPTOISOLATOR FOR SPY CENTER SYSTEMS

View

A112

INTERNATIONAL TRAVEL FOR SYSTEM START-UP

View

A113

INTERNATIONAL TRAVEL WITH 1 NIGHT FOR SYSTEM START-UP

View

A272

4H CENTRAL START-UP SERVICE

View

A273

8H CENTRAL START-UP SERVICE

View

B100

BATTERY LEAD 12V 12AH

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

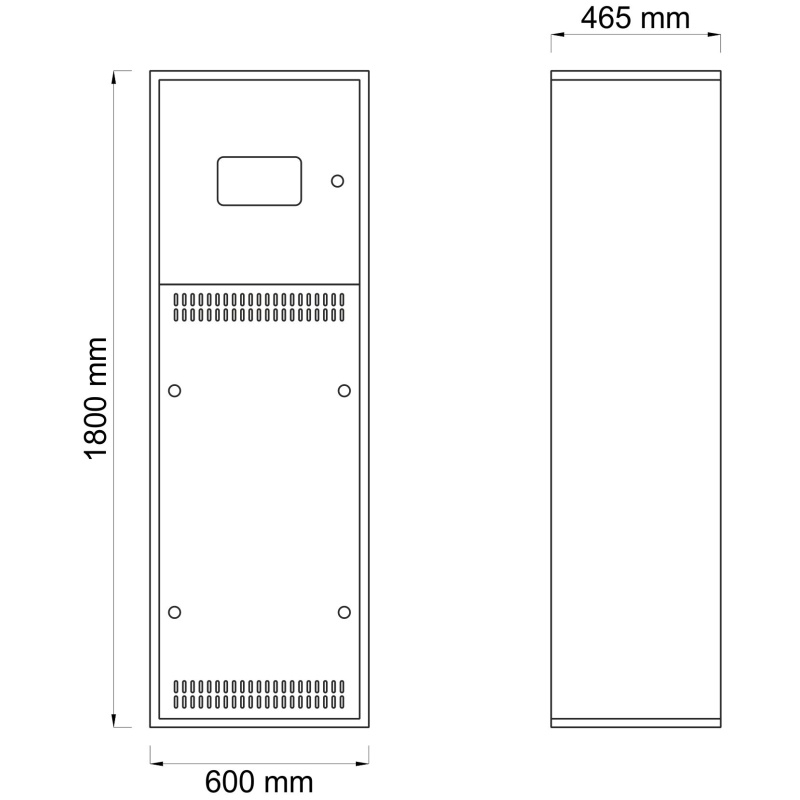

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
