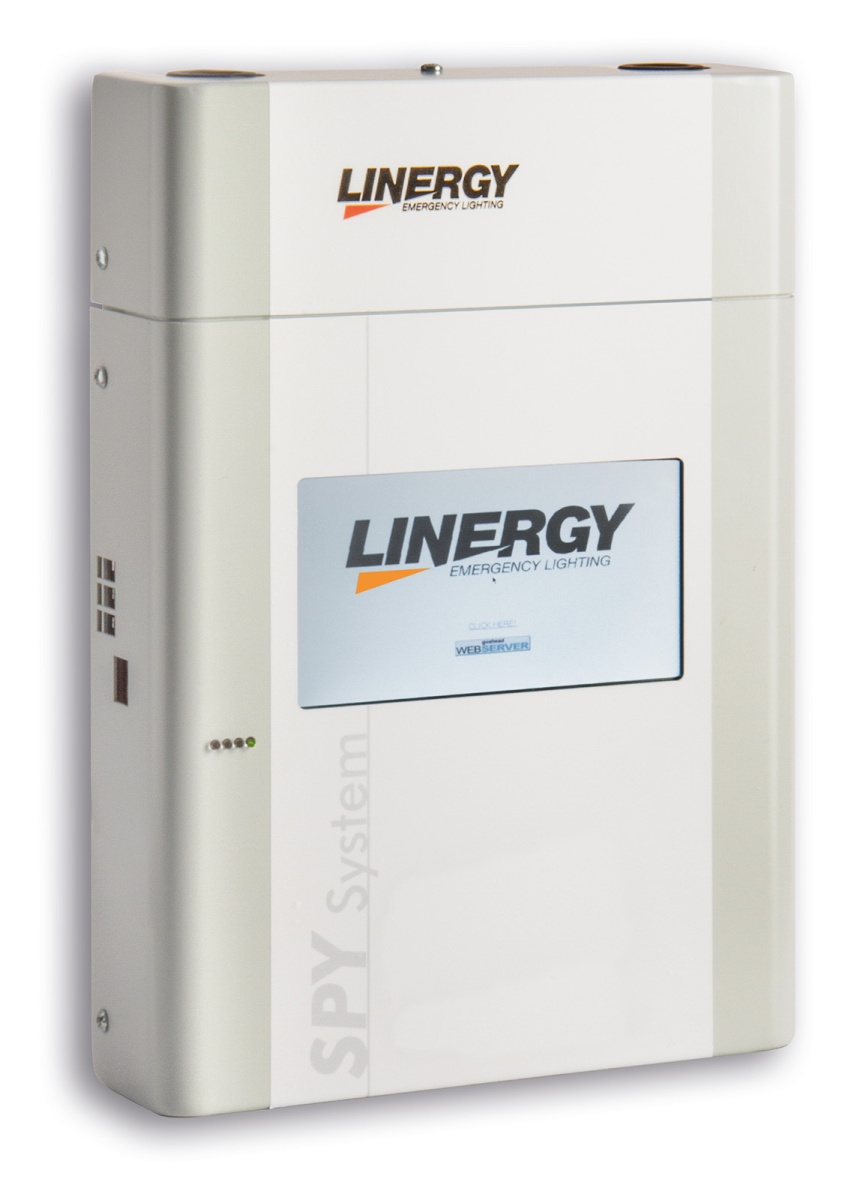

SS1101

SSCENT-00

IP30

Technical features

properties
Item availability
In 5 days
Non-binding indication - shipping time not included
POWER SUPPLY
  • Type: mono-phase
  • Voltage: 230 Vac, 50-60 Hz
INTERFACE
  • Display: yes
  • Local user interface: 7" colour graphic display with touch screen
  • Remote user interface: web server
  • Printer: no
  • Wireless option: yes
LUMINAIRES
  • Luminaires on the bus: 256 max on the central unit + 128 max for each Repeater channel
  • Luminaires handled: 1280 max
  • Groups handled: 32 max
  • Number of repeaters: 8 max
BATTERY
  • Type: Li-ion
  • Duration in battery mode: 4 h
COMMUNICATION
  • Data bus: 2 wires with polarity (twisted and shielded)
  • Communication protocol: TCP/IP via ethernet
  • Data ports: 3 USB + 1 RJ 45
INSTALLATION
  • Installation: wall mounted

A116

HW AND SW INTERFACE KONNEX SSCENT

View

A118

SW INTERFACE FOR TCP/MODBUS SPY SYSTEM

View

A120

GRAPHIC SUPERVISION SOFTWARE SPYSYSTEM

View

A122

BUS REPEATER 2X128 256 LUMINAIRES

View

A123

BUS REPEATER 4X128 512 LUMINAIRES

View

A124

COMAND FOR LIGHT LEVEL

View

A270

SPY SYSTEM WIRELESS RANGE EXTENDER

View

A315

SPY SYSTEM WIRELESS ACCESS POINT

View

A112

INTERNATIONAL TRAVEL FOR SYSTEM START-UP

View

A113

INTERNATIONAL TRAVEL WITH 1 NIGHT FOR SYSTEM START-UP

View

A272

4H CENTRAL START-UP SERVICE

View

A273

8H CENTRAL START-UP SERVICE

View

B034

BATTERY LI-PO 3,7 VOLT 4,4AH 8X47X96

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

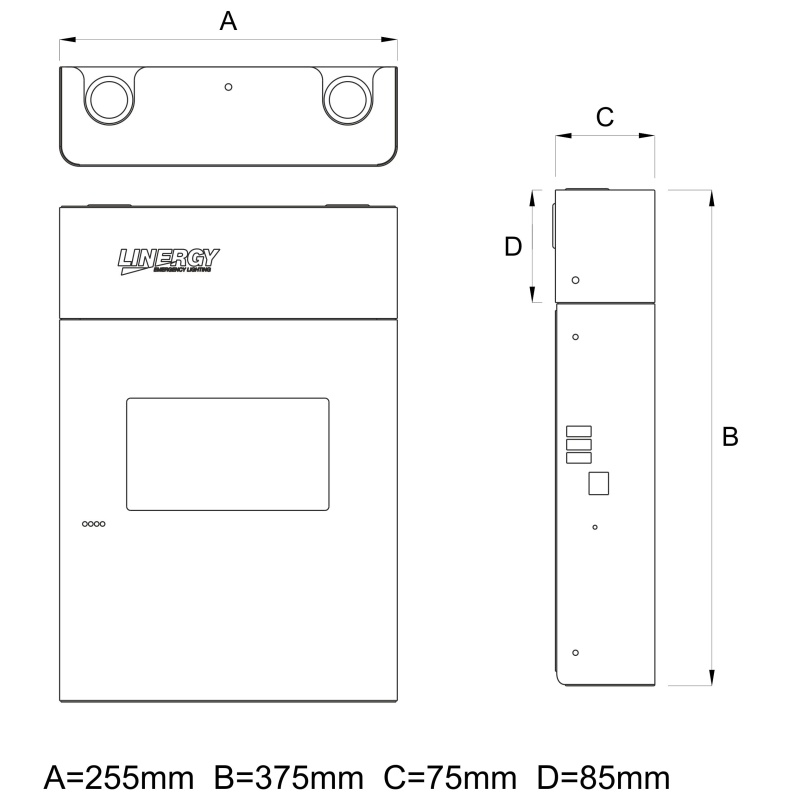

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
