SS1107

SSMINIPLUS-00

IP20

Technical features

properties
Item availability
In 5 days
Non-binding indication - shipping time not included
POWER SUPPLY
  • Type: mono-phase
  • Voltage: 230 Vac, 50-60 Hz
INTERFACE
  • Display: yes
  • Local user interface: 4,3" colour graphic display with touch screen
  • Remote user interface: web server
  • Printer: optional
  • Wireless option: yes
LUMINAIRES
  • Luminaires handled: 128 max (expandable by means of Expander)
  • Groups handled: 4 max
  • Number of repeaters: 8 max
BATTERY
  • Type: Li-FePO4
  • Duration in battery mode: 4 h
COMMUNICATION
  • Data bus: 2 wires with polarity (twisted and shielded)
  • Communication protocol: TCP/IP via ethernet
  • Data ports: 1 RJ 45
INSTALLATION
  • Installation: DIN rail

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

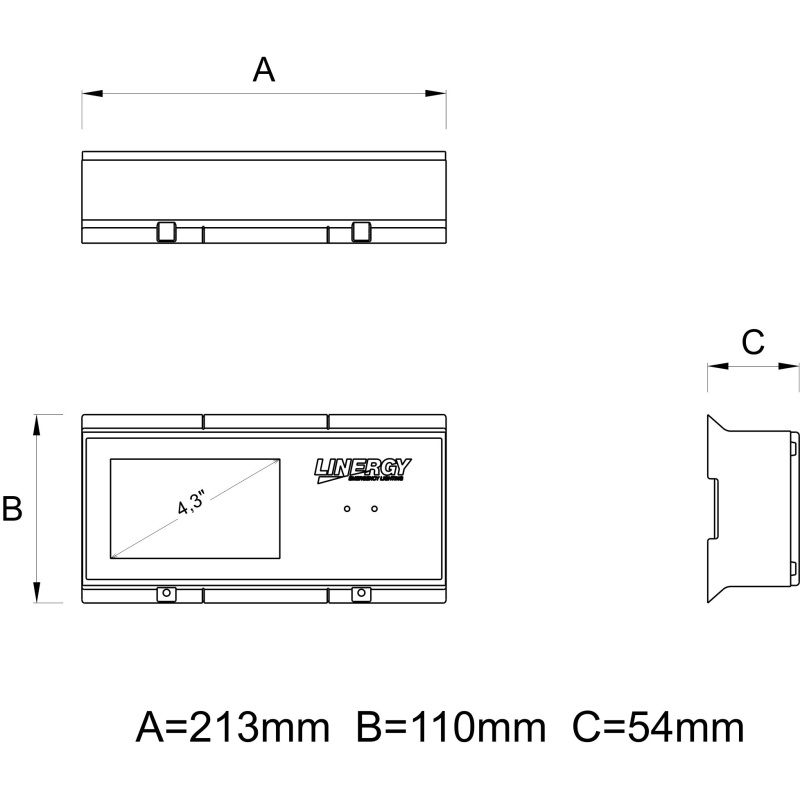

Technical drawing
