Homepage | Products | Emergency luminaires | FREE | FE1001
< FREE
1h selector 3h selector

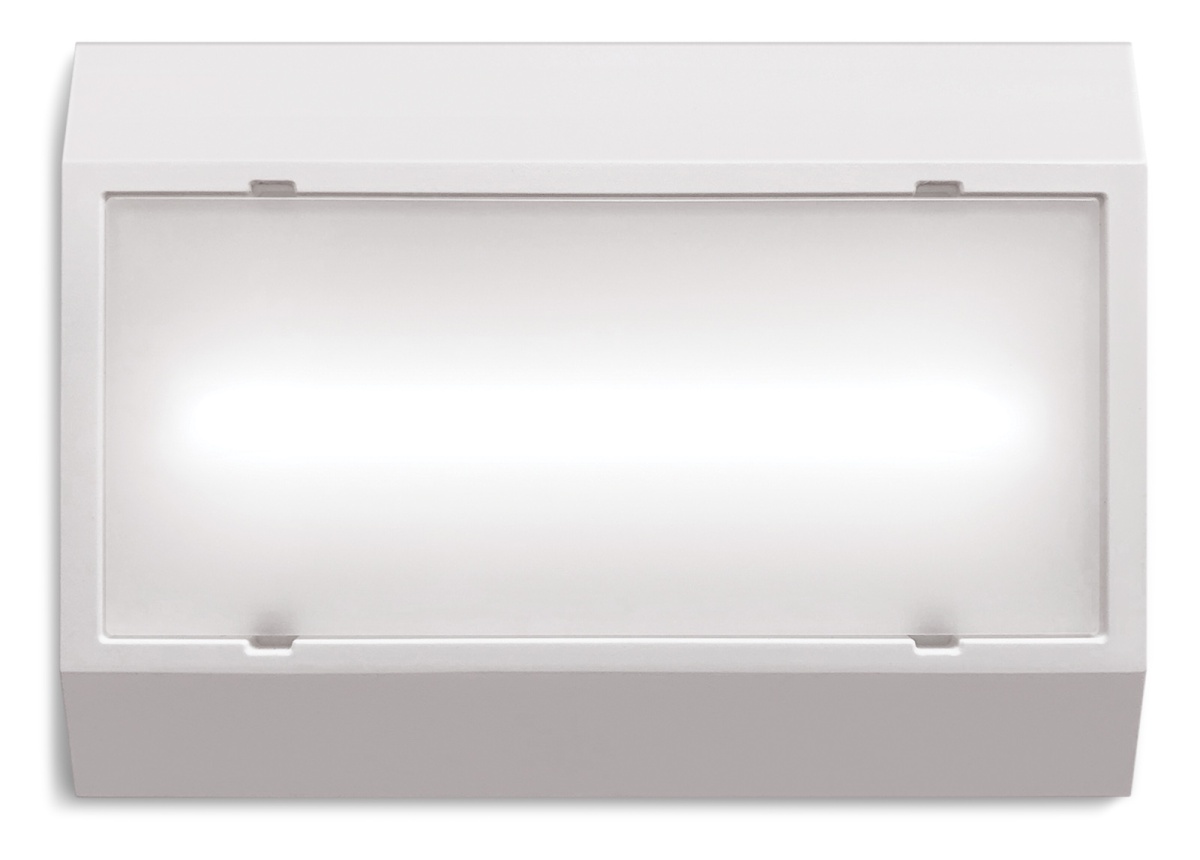

FE1001

FE100N30ABS

IP40

Caratteristiche tecniche

properties
  • Duration: 1h/3h
  • Type: NM/M
  • Function: Standard
  • Input power: 2,8/0,7W (M or N/M)
  • Avarage flux N/M: 150/50lm (1h/3h)
  • Flux M: 150/50lm (1h/3h)
  • Battery: Ni-Cd 3,6V 0,6Ah
Disponibilità articolo
Stocked
Non-binding indication

FE1001

FE100N30ABS

IP40

Technical features

properties
  • Duration: 1h/3h
  • Type: NM/M
  • Function: Standard
  • Input power: 2,8/0,7W (M or N/M)
  • Avarage flux N/M: 150/50lm (1h/3h)
  • Flux M: 150/50lm (1h/3h)
  • Battery: Ni-Cd 3,6V 0,6Ah
Item availability
Stocked
Non-binding indication

B125

BATTERY NICD 3,6V 0,6AH SPRINT-FREE

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

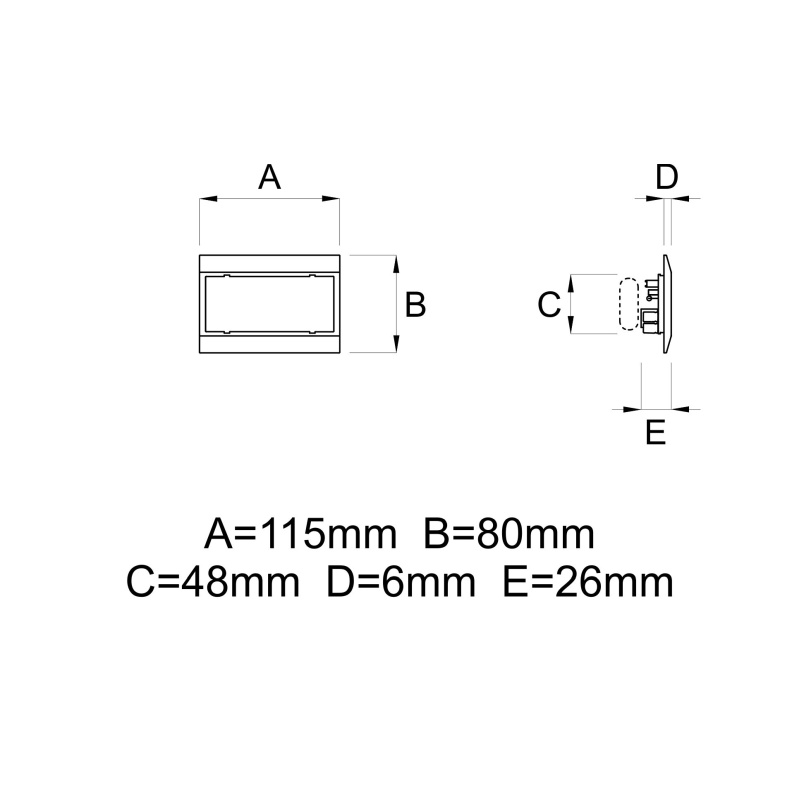

Technical drawing

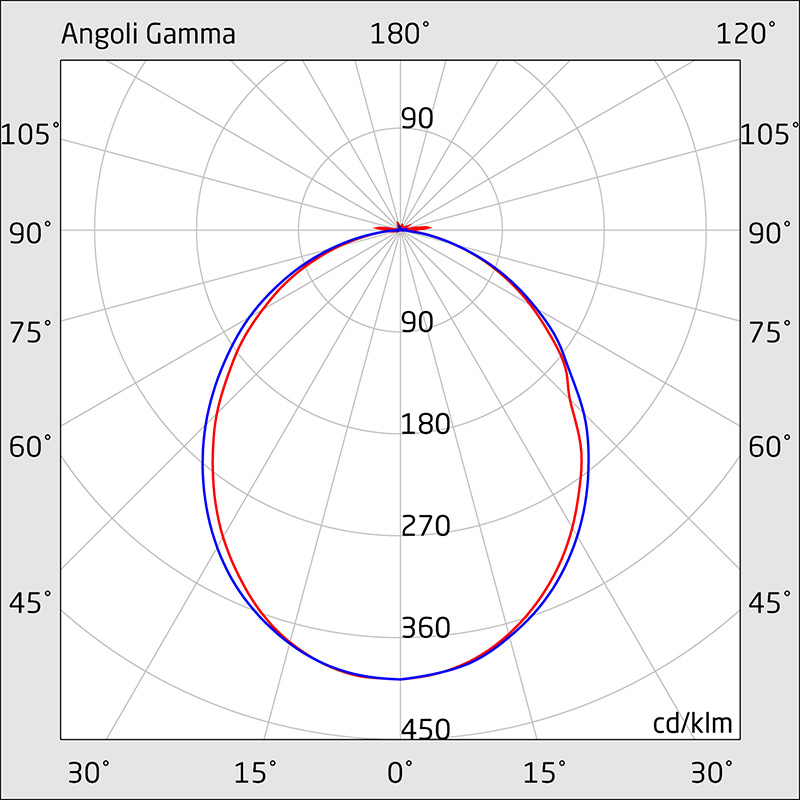

Polar Diagram

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing

Polar Diagram
