< VIALED IP65
Asymmetrical optics Symmetrical optics

VA1301

VA03F20EBRT

i
electronic module
IP20
i
spotlight
IP65

Caratteristiche tecniche

properties
  • Duration: 2h
  • Lens: symmetrical + asymmetrical
  • Type: NM
  • Function: Energy Test
  • Input power: 0,7W
  • Avarage flux N/M: 750lm
  • Colour: White
  • Battery: Li-FePO4 6,4V 1,8Ah
Disponibilità articolo
In 5 days
Non-binding indication - shipping time not included

VA1301

VA03F20EBRT

i
electronic module
IP20
i
spotlight
IP65

Technical features

properties
  • Duration: 2h
  • Lens: symmetrical + asymmetrical
  • Type: NM
  • Function: Energy Test
  • Input power: 0,7W
  • Avarage flux N/M: 750lm
  • Colour: White
  • Battery: Li-FePO4 6,4V 1,8Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

A095

CLASP IP42 FOR CEILING FASTENING VIALED WHITE

View

A306

CLASP FOR CEILING FASTENING VIALED WHITE IP65

View

A320

SIGNALLING KIT

View

A332

KIT FOR REST MODE WITH COMMANDER

View

A350

CONTROLLER FOR THE REMOTE MANAGEMENT OF REST MODE

View

B132

BATTERY LIFEPO4 6,4V 1,8AH SIZE 18650 3P

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

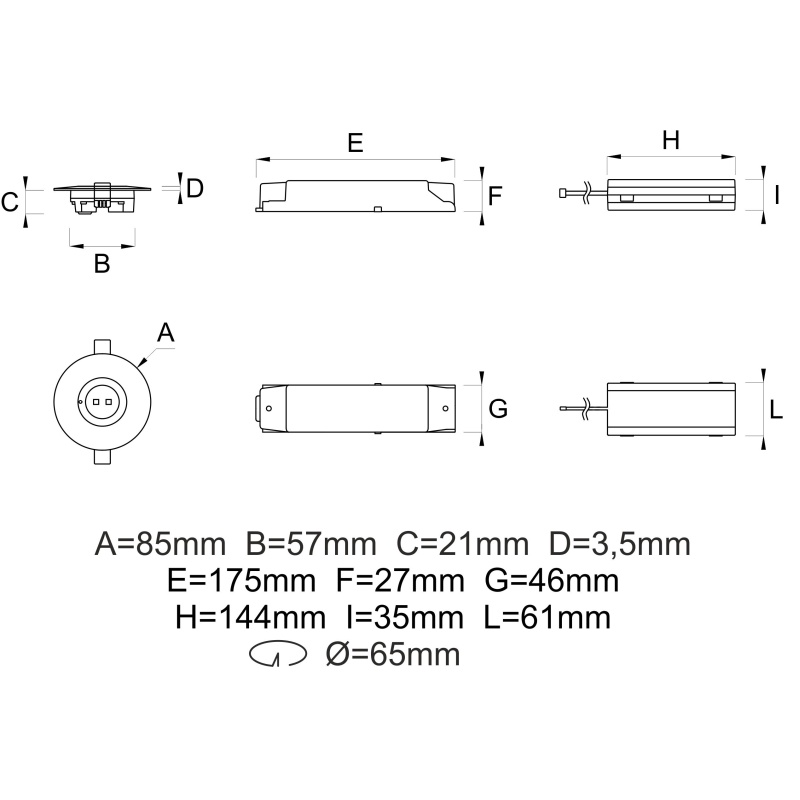

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
