< VIALED IP65
Asymmetrical optics Symmetrical optics

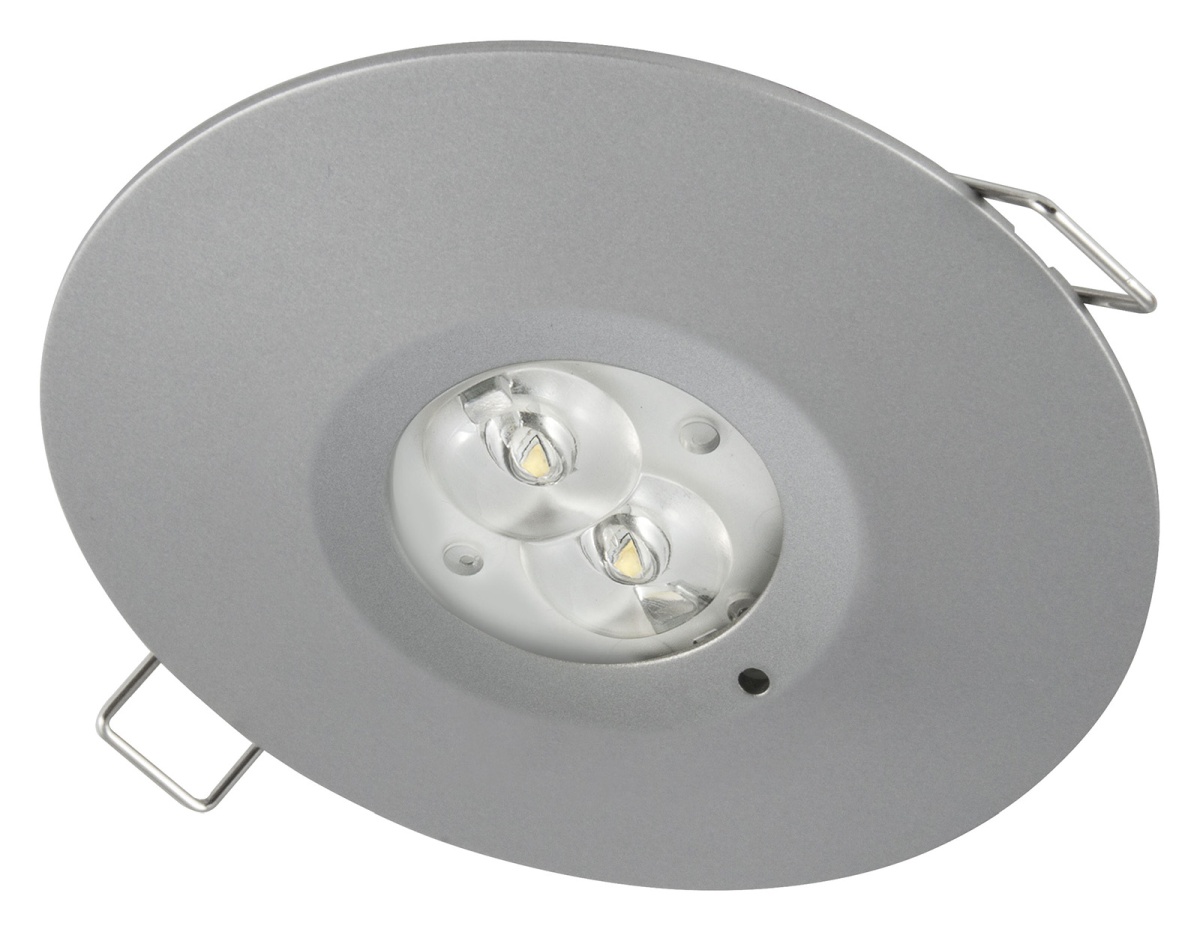

VA1508

VA03F30AGRC

i
electronic module
IP20
i
spotlight
IP65

Caratteristiche tecniche

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: NM/M
  • Function: Spy System
  • Input power: 8,9W
  • Avarage flux N/M: 750lm
  • Flux M: 750lm
  • Colour: Grey
  • Battery: Li-FePO4 6,4V 3,8Ah
Disponibilità articolo
In 5 days
Non-binding indication - shipping time not included

VA1508

VA03F30AGRC

i
electronic module
IP20
i
spotlight
IP65

Technical features

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: NM/M
  • Function: Spy System
  • Input power: 8,9W
  • Avarage flux N/M: 750lm
  • Flux M: 750lm
  • Colour: Grey
  • Battery: Li-FePO4 6,4V 3,8Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

A080

CLASP IP42 FOR CEILING FASTENING VIALED GREY

View

A307

CLASP FOR CEILING FASTENING VIALED GREY IP65

View

A320

SIGNALLING KIT

View

B133

BATTERY LIFEPO4 6,4V 3,8AH SIZE 26650 3P

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

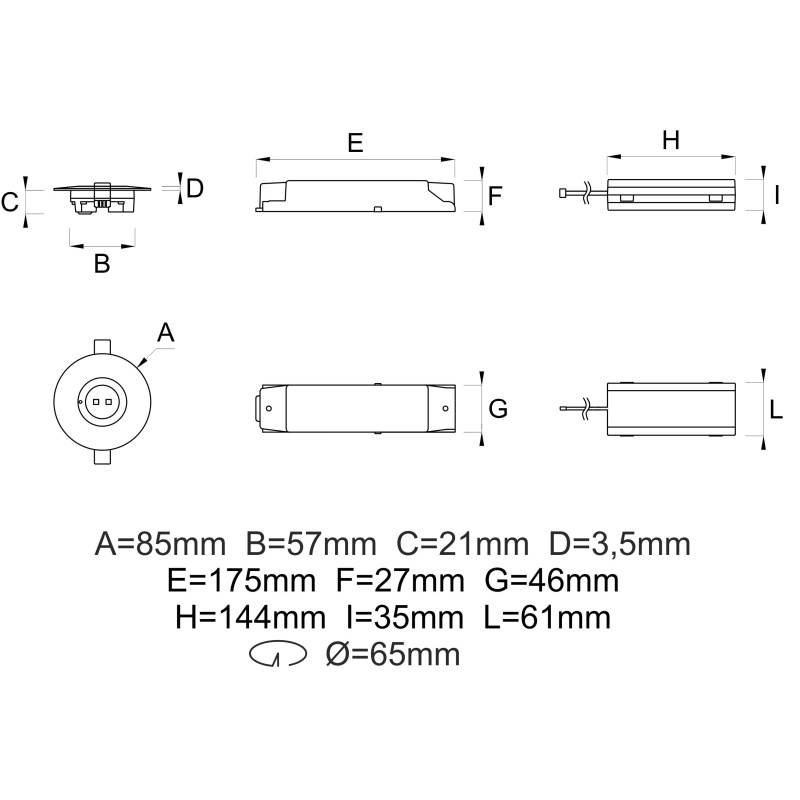

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
