Homepage | Products | Emergency luminaires | VIALED IP65 | VA1604
< VIALED IP65
Asymmetrical optics Symmetrical optics

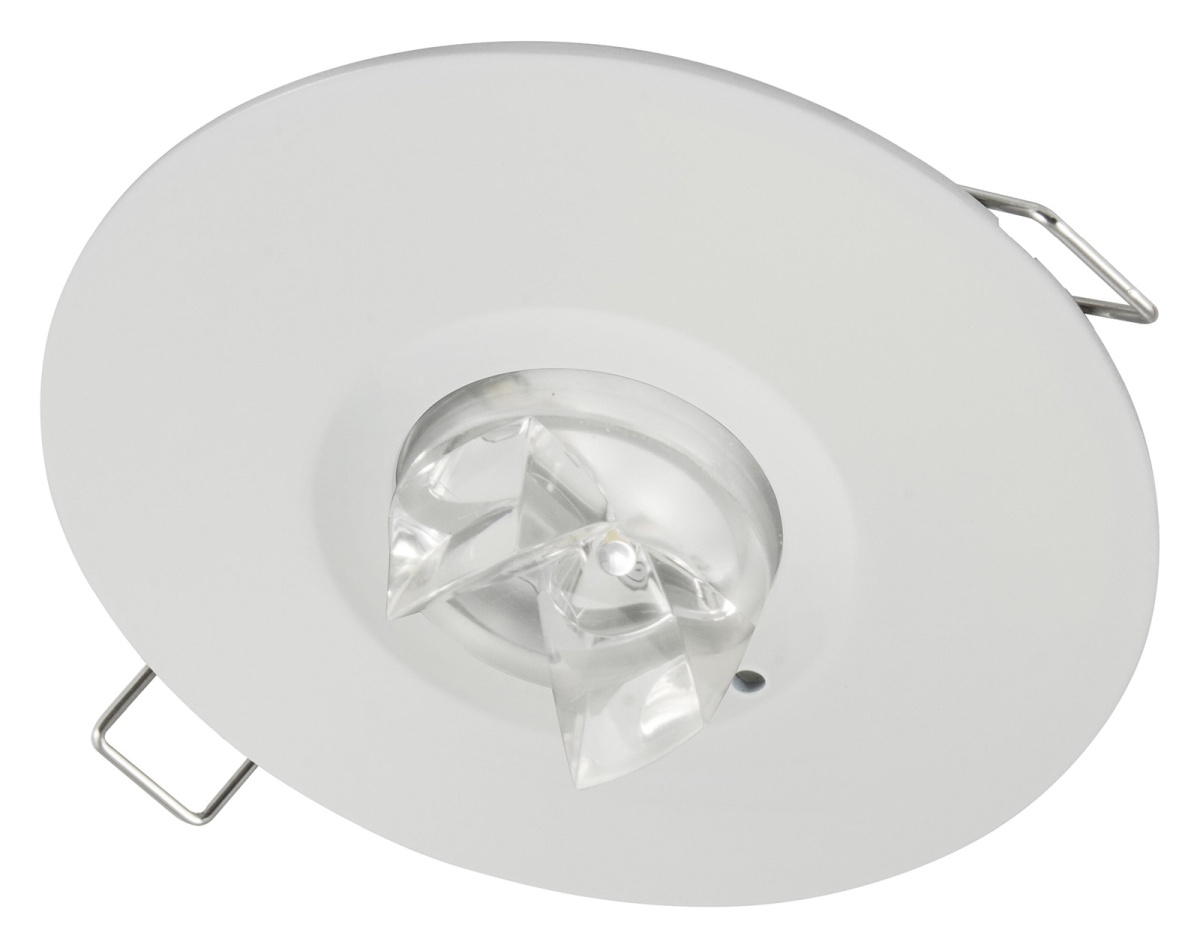

VA1604

VA03F30ABRD

i
electronic module
IP20
i
spotlight
IP65

Caratteristiche tecniche

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: M
  • Function: Dali
  • Input power: 8,9W
  • Avarage flux N/M: 750lm
  • Flux M: 750lm
  • Colour: White
  • Battery: Li-FePO4 6,4V 3,8Ah
Disponibilità articolo
In 5 days
Non-binding indication - shipping time not included

VA1604

VA03F30ABRD

i
electronic module
IP20
i
spotlight
IP65

Technical features

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: M
  • Function: Dali
  • Input power: 8,9W
  • Avarage flux N/M: 750lm
  • Flux M: 750lm
  • Colour: White
  • Battery: Li-FePO4 6,4V 3,8Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

A095

CLASP IP42 FOR CEILING FASTENING VIALED WHITE

View

A306

CLASP FOR CEILING FASTENING VIALED WHITE IP65

View

A320

SIGNALLING KIT

View

B133

BATTERY LIFEPO4 6,4V 3,8AH SIZE 26650 3P

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

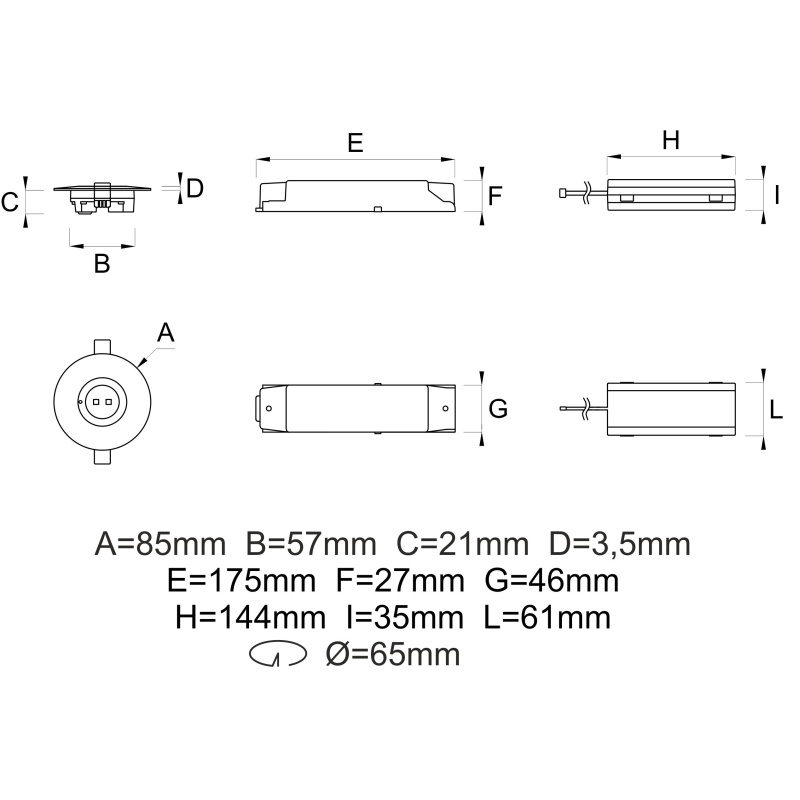

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
