< VIALED EVO
Asymmetrical optics Symmetrical optics

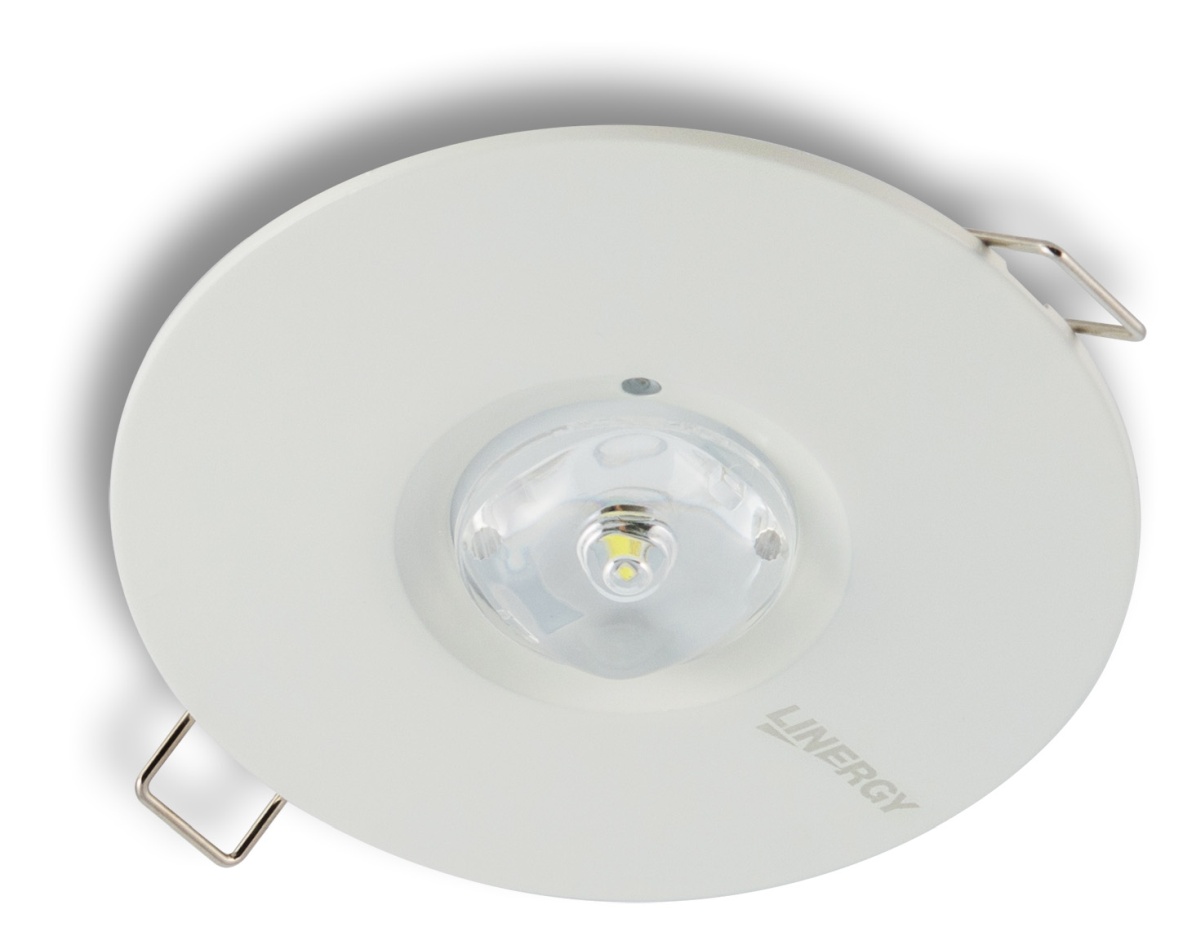

VE1201

VE03N10EBR

i
dall'alto
IP20
i
dal basso
IP42

Caratteristiche tecniche

properties
  • Duration: 1h
  • Lens: symmetrical + asymmetrical
  • Type: NM
  • Function: Rest Mode
  • Input power: 0,4W
  • Avarage flux N/M: 450lm
  • Colour: White
  • Battery: Li-FePO4 3,2V 1,5Ah
Disponibilità articolo
In 5 days
Non-binding indication - shipping time not included

VE1201

VE03N10EBR

i
dall'alto
IP20
i
dal basso
IP42

Technical features

properties
  • Duration: 1h
  • Lens: symmetrical + asymmetrical
  • Type: NM
  • Function: Rest Mode
  • Input power: 0,4W
  • Avarage flux N/M: 450lm
  • Colour: White
  • Battery: Li-FePO4 3,2V 1,5Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

A095

CLASP IP42 FOR CEILING FASTENING VIALED WHITE

View

A320

SIGNALLING KIT

View

A350

CONTROLLER FOR THE REMOTE MANAGEMENT OF REST MODE

View

B087

BATTERY LIFEPO4 3,2V 1,5AH

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

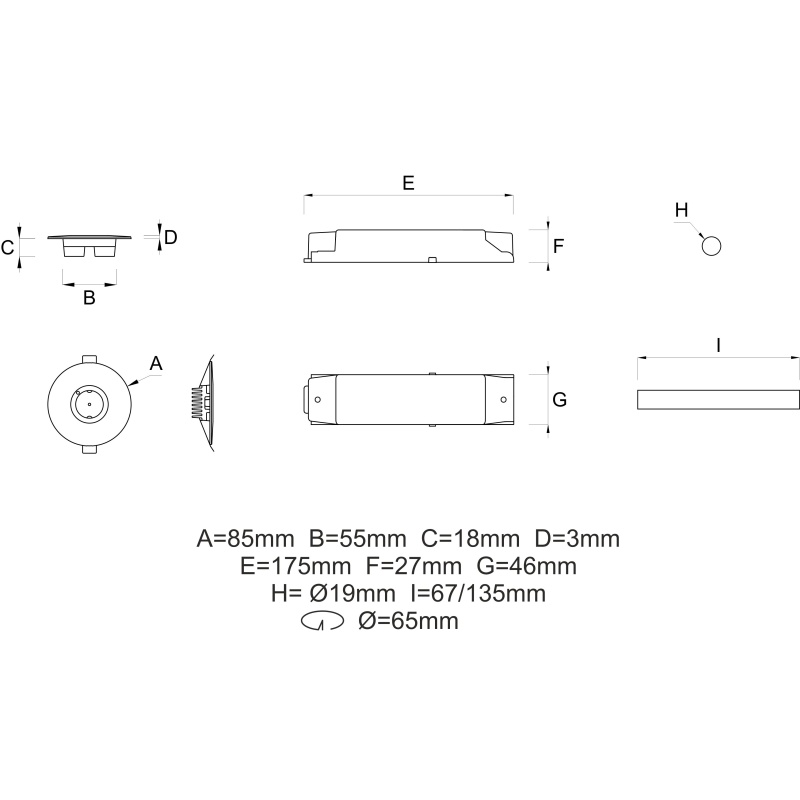

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
