< VIALED EVO
Asymmetrical optics Symmetrical optics

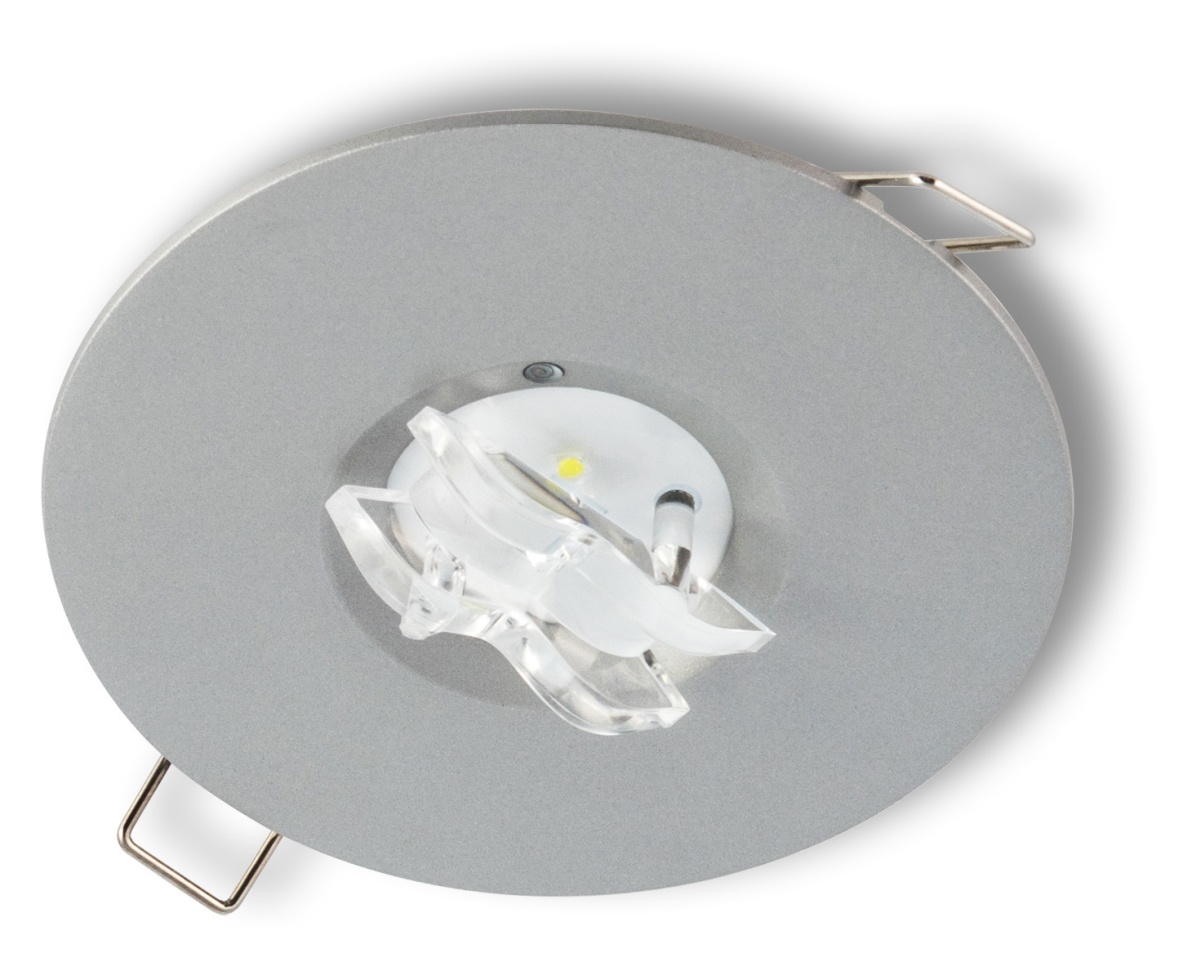

VE1308

VE03F30AGRT

i
dall'alto
IP20
i
dal basso
IP42

Caratteristiche tecniche

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: NM/M
  • Function: Energy Test
  • Input power: 5,7W
  • Avarage flux N/M: 450lm
  • Flux M: 450lm
  • Colour: Grey
  • Battery: Li-FePO4 3,2V 6Ah
Disponibilità articolo
In 5 days
Non-binding indication - shipping time not included

VE1308

VE03F30AGRT

i
dall'alto
IP20
i
dal basso
IP42

Technical features

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: NM/M
  • Function: Energy Test
  • Input power: 5,7W
  • Avarage flux N/M: 450lm
  • Flux M: 450lm
  • Colour: Grey
  • Battery: Li-FePO4 3,2V 6Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

A080

CLASP IP42 FOR CEILING FASTENING VIALED GREY

View

A320

SIGNALLING KIT

View

A333

KIT FOR REST MODE WITH COMMANDER

View

A350

CONTROLLER FOR THE REMOTE MANAGEMENT OF REST MODE

View

B136

BATTERY LIFEPO4 3,2V 6AH

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

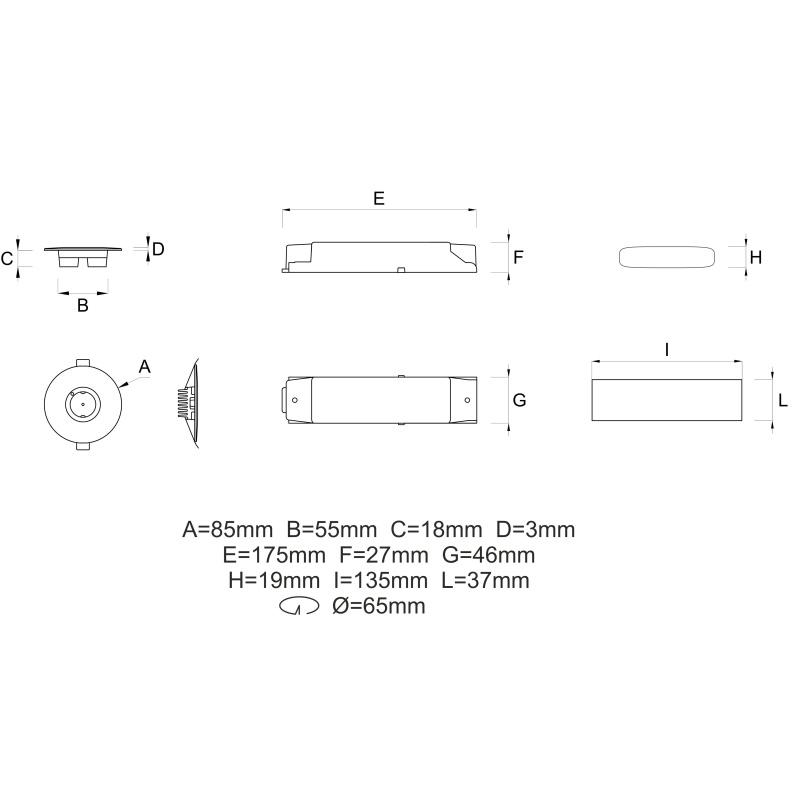

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
