Homepage | Products | Emergency luminaires | VIALED EVO | VE2401
< VIALED EVO
Asymmetrical optics Symmetrical optics

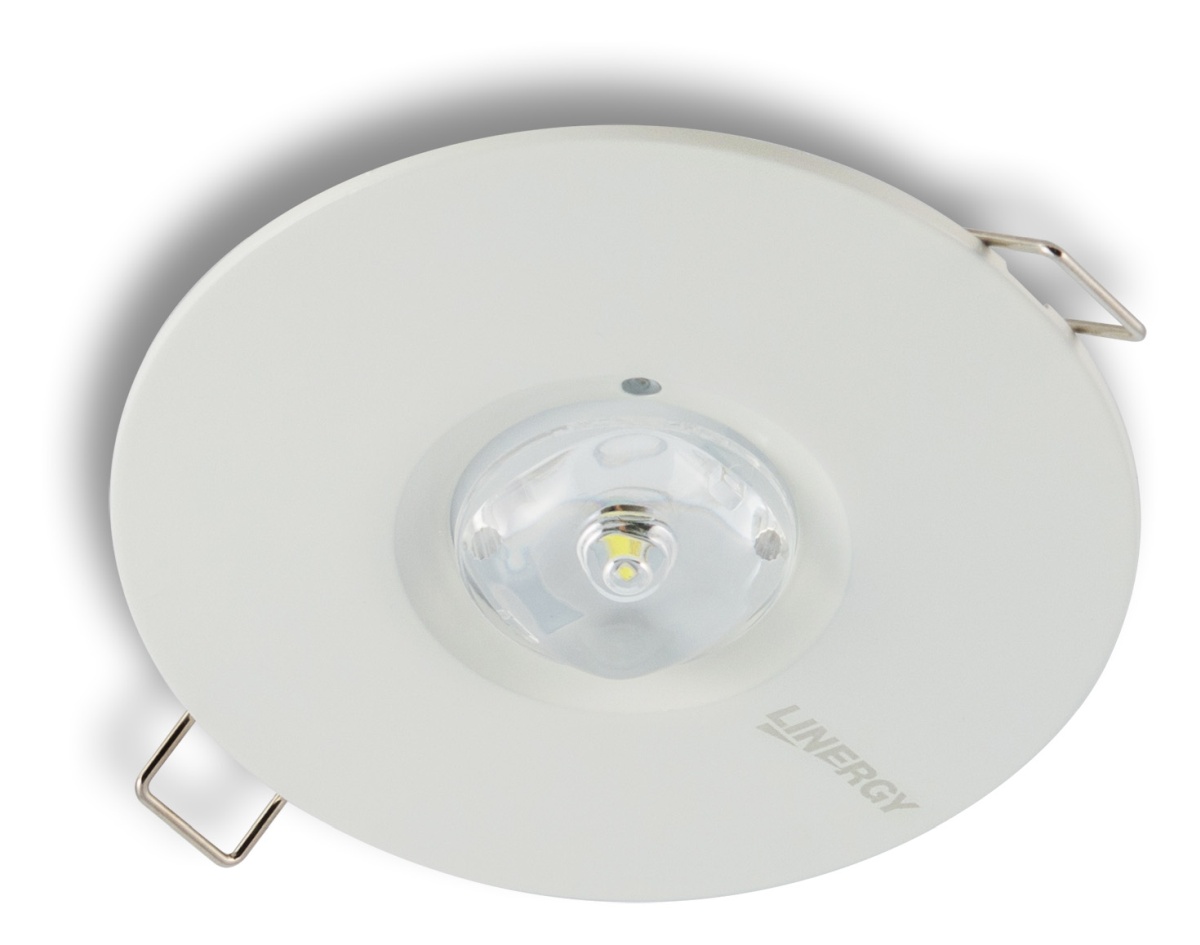

VE2401

VE03N10EBRW

i
dall'alto
IP20
i
dal basso
IP42

Caratteristiche tecniche

properties
  • Duration: 1h
  • Lens: symmetrical + asymmetrical
  • Type: NM
  • Function: Spy System Wireless
  • Input power: 0,4W
  • Avarage flux N/M: 450lm
  • Colour: White
  • Battery: Li-FePO4 3,2V 1,5Ah
Disponibilità articolo
In 5 days
Non-binding indication - shipping time not included

VE2401

VE03N10EBRW

i
dall'alto
IP20
i
dal basso
IP42

Technical features

properties
  • Duration: 1h
  • Lens: symmetrical + asymmetrical
  • Type: NM
  • Function: Spy System Wireless
  • Input power: 0,4W
  • Avarage flux N/M: 450lm
  • Colour: White
  • Battery: Li-FePO4 3,2V 1,5Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

A095

CLASP IP42 FOR CEILING FASTENING VIALED WHITE

View

A320

SIGNALLING KIT

View

B087

BATTERY LIFEPO4 3,2V 1,5AH

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

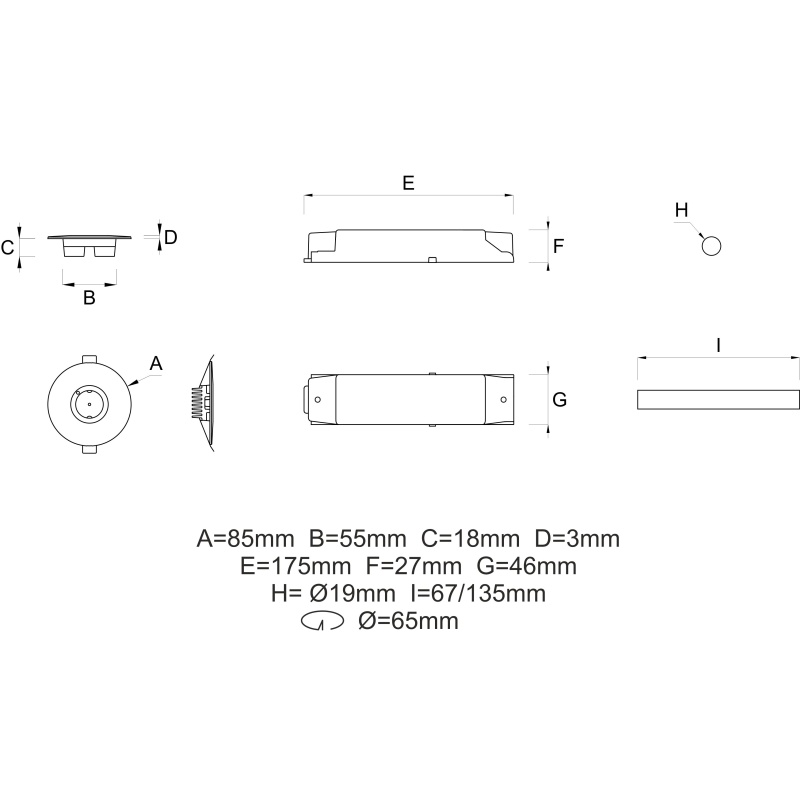

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
