Homepage | Products | Emergency luminaires | VIALED EVO | VE2421
< VIALED EVO
Asymmetrical optics Symmetrical optics

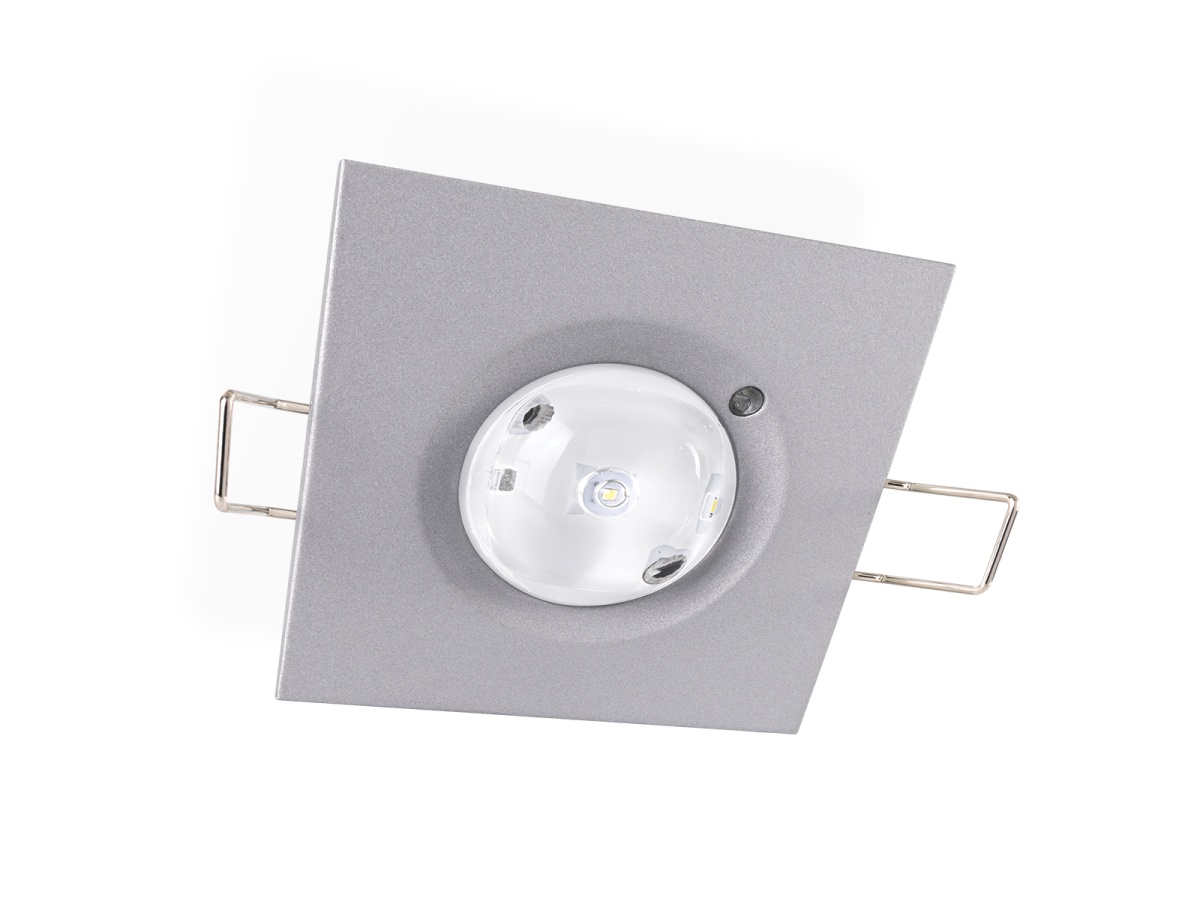

VE2421

VE03N10EGRW-Q

i
dall'alto
IP20
i
dal basso
IP42

Caratteristiche tecniche

properties
  • Duration: 1h
  • Lens: symmetrical + asymmetrical
  • Type: NM
  • Function: Spy System Wireless
  • Input power: 0,4W
  • Avarage flux N/M: 450lm
  • Colour: Grey
  • Battery: Ni-Cd 4,8V 1,4Ah
Disponibilità articolo
In 5 days
Non-binding indication - shipping time not included

VE2421

VE03N10EGRW-Q

i
dall'alto
IP20
i
dal basso
IP42

Technical features

properties
  • Duration: 1h
  • Lens: symmetrical + asymmetrical
  • Type: NM
  • Function: Spy System Wireless
  • Input power: 0,4W
  • Avarage flux N/M: 450lm
  • Colour: Grey
  • Battery: Ni-Cd 4,8V 1,4Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

B038

Battery NiCd 4,8 Volt 1,4Ah 16,5X33X98 A

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

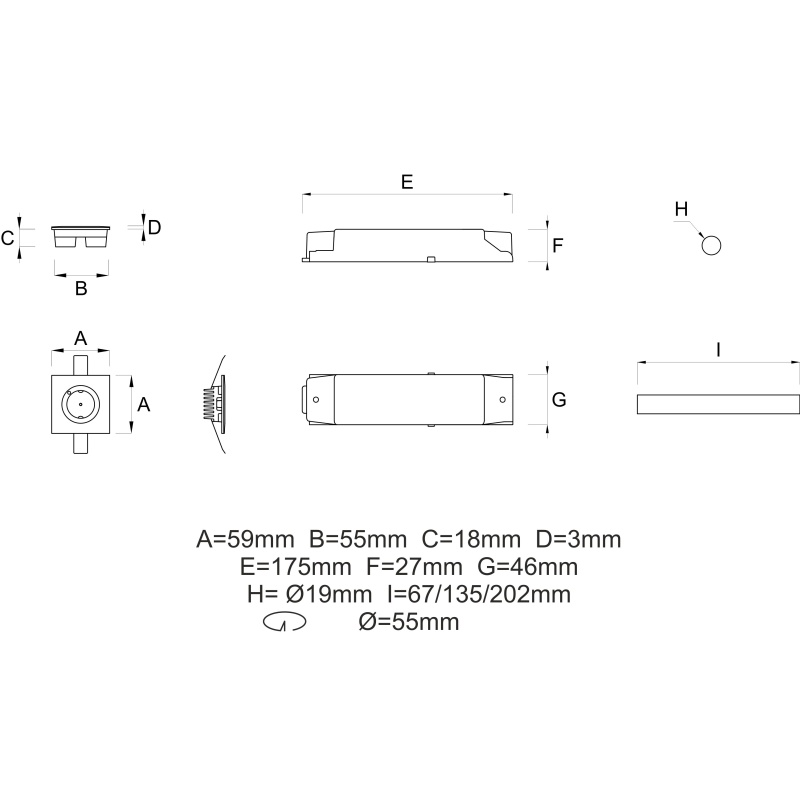

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
