Homepage | Products | Emergency luminaires | VIALED HIGH | VH1204
< VIALED HIGH
Asymmetrical optics Symmetrical optics

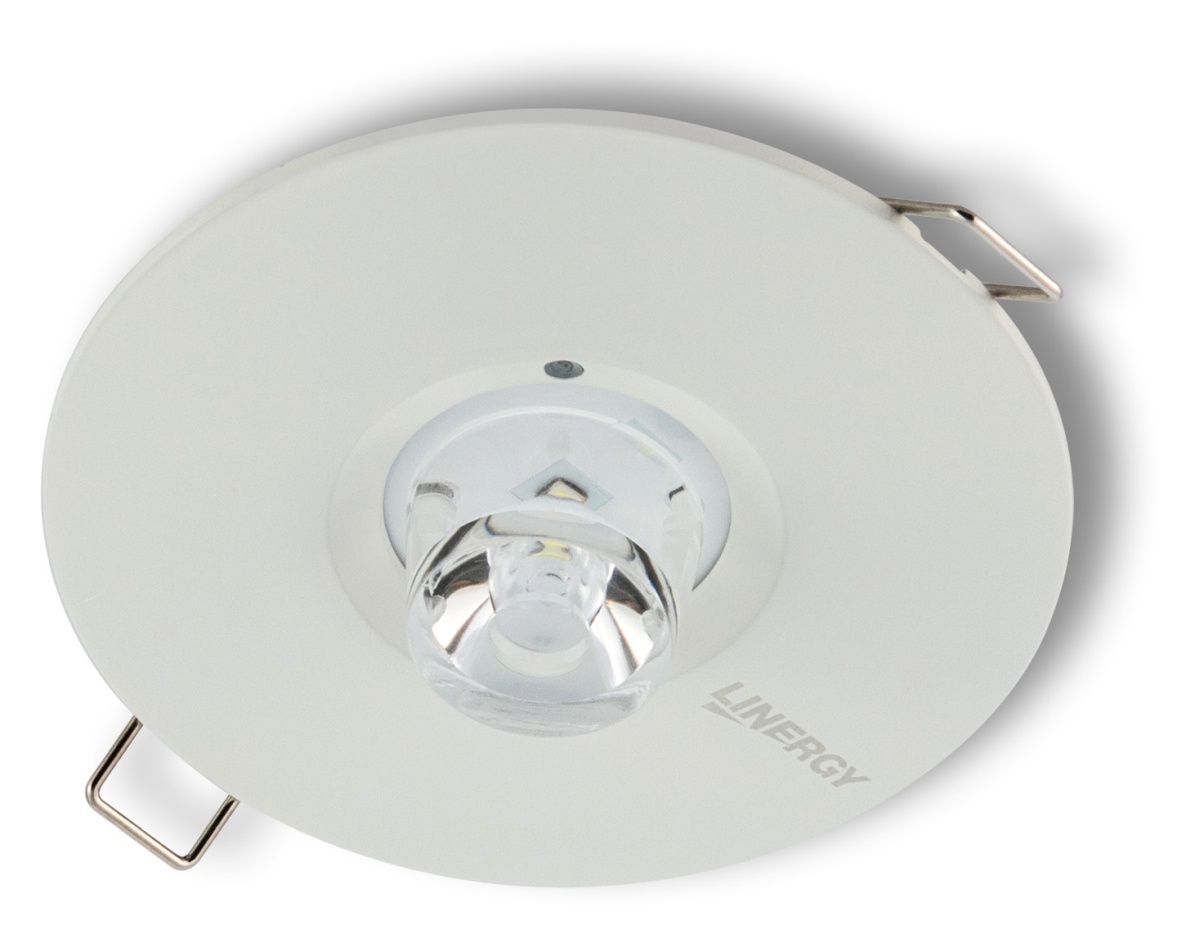

VH1204

VH03F30ABR

i
dall'alto
IP20
i
dal basso
IP42

Caratteristiche tecniche

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: NM/M
  • Function: Rest Mode
  • Input power: 5,7W
  • Avarage flux N/M: 440lm
  • Flux M: 440lm
  • Colour: White
  • Battery: Li-FePO4 3,2V 6Ah
Disponibilità articolo
In 5 days
Non-binding indication - shipping time not included

VH1204

VH03F30ABR

i
dall'alto
IP20
i
dal basso
IP42

Technical features

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: NM/M
  • Function: Rest Mode
  • Input power: 5,7W
  • Avarage flux N/M: 440lm
  • Flux M: 440lm
  • Colour: White
  • Battery: Li-FePO4 3,2V 6Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

A095

CLASP IP42 FOR CEILING FASTENING VIALED WHITE

View

A320

SIGNALLING KIT

View

A333

KIT FOR REST MODE WITH COMMANDER

View

A350

CONTROLLER FOR THE REMOTE MANAGEMENT OF REST MODE

View

B136

BATTERY LIFEPO4 3,2V 6AH

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

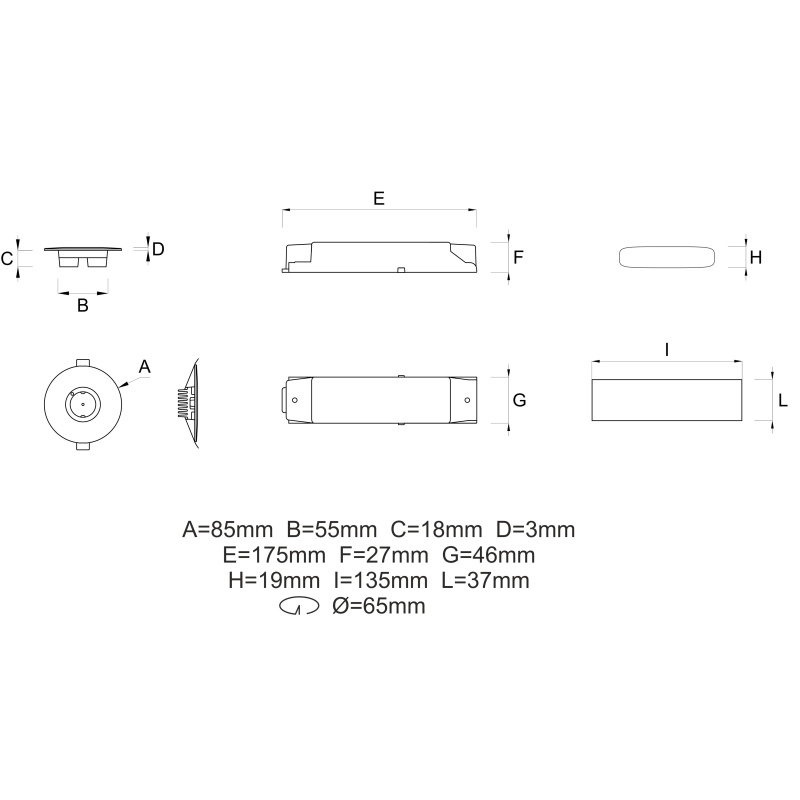

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
