Homepage | Products | Emergency luminaires | VIALED HIGH | VH1605
< VIALED HIGH
Asymmetrical optics Symmetrical optics

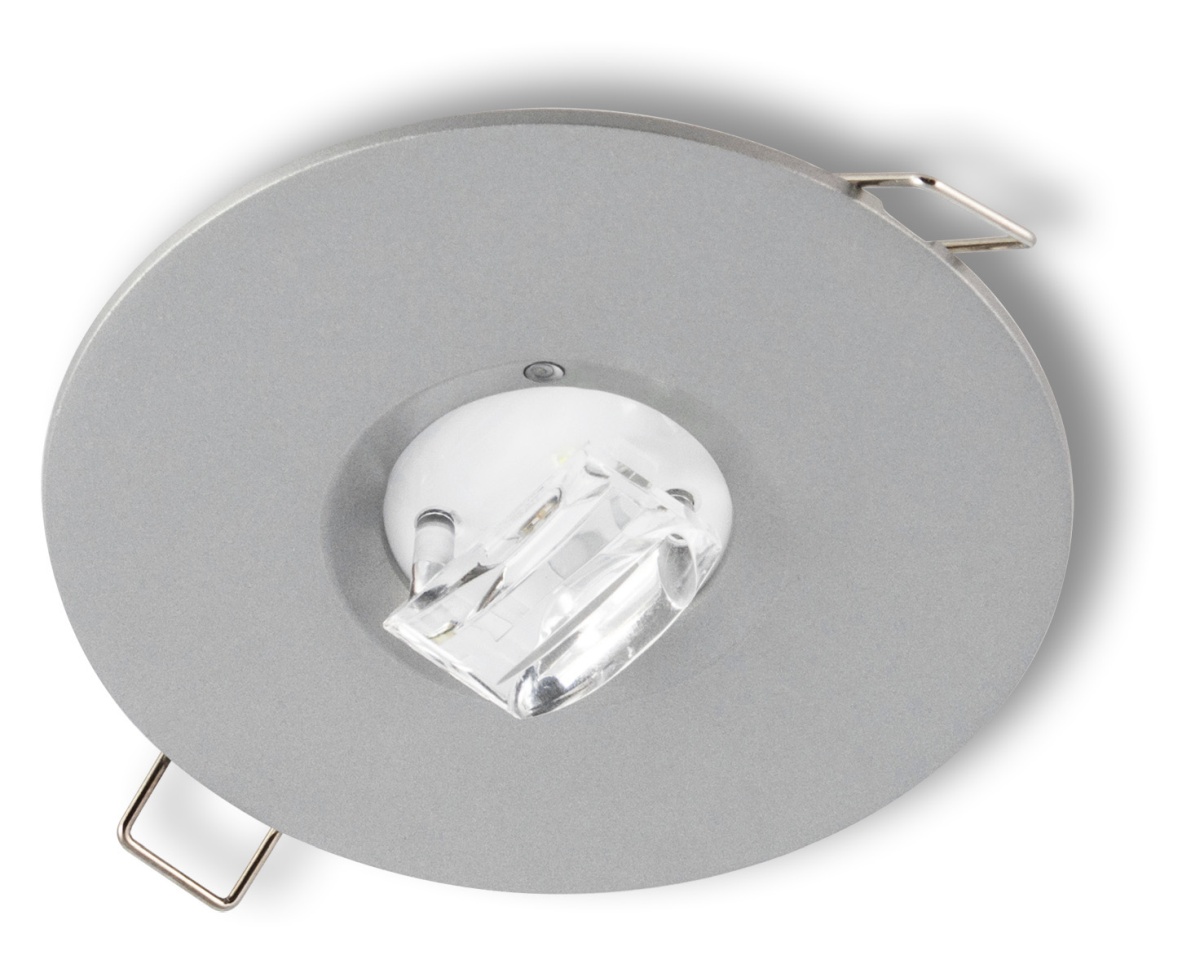

VH1605

VH03N30EGRD

i
dall'alto
IP20
i
dal basso
IP42

Caratteristiche tecniche

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: NM
  • Function: Dali
  • Input power: 0,4W
  • Avarage flux N/M: 360lm
  • Colour: Grey
  • Battery: Li-FePO4 3,2V 3Ah
Disponibilità articolo
In 5 days
Non-binding indication - shipping time not included

VH1605

VH03N30EGRD

i
dall'alto
IP20
i
dal basso
IP42

Technical features

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: NM
  • Function: Dali
  • Input power: 0,4W
  • Avarage flux N/M: 360lm
  • Colour: Grey
  • Battery: Li-FePO4 3,2V 3Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

A080

CLASP IP42 FOR CEILING FASTENING VIALED GREY

View

A320

SIGNALLING KIT

View

B102

BATTERY LiFePO4 3,2V 3AH SIZE 18650

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

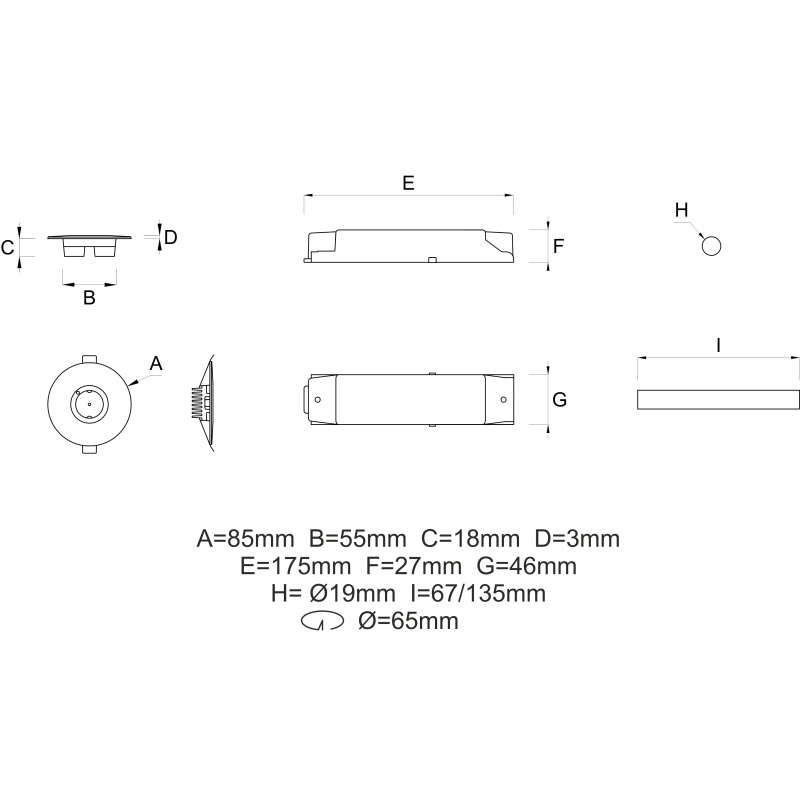

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
