VH2416

VH03F30AGRW-68

i
dall'alto
IP20
i
dal basso
IP42

Caratteristiche tecniche

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: NM/M
  • Function: Spy System Wireless
  • Input power: 5,7W
  • Avarage flux N/M: 440lm
  • Flux M: 440lm
  • Colour: Grey
  • Battery: Li-FePO4 3,2V 4,5Ah
Disponibilità articolo
In 5 days
Non-binding indication - shipping time not included

VH2416

VH03F30AGRW-68

i
dall'alto
IP20
i
dal basso
IP42

Technical features

properties
  • Duration: 3h
  • Lens: symmetrical + asymmetrical
  • Type: NM/M
  • Function: Spy System Wireless
  • Input power: 5,7W
  • Avarage flux N/M: 440lm
  • Flux M: 440lm
  • Colour: Grey
  • Battery: Li-FePO4 3,2V 4,5Ah
Item availability
In 5 days
Non-binding indication - shipping time not included

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

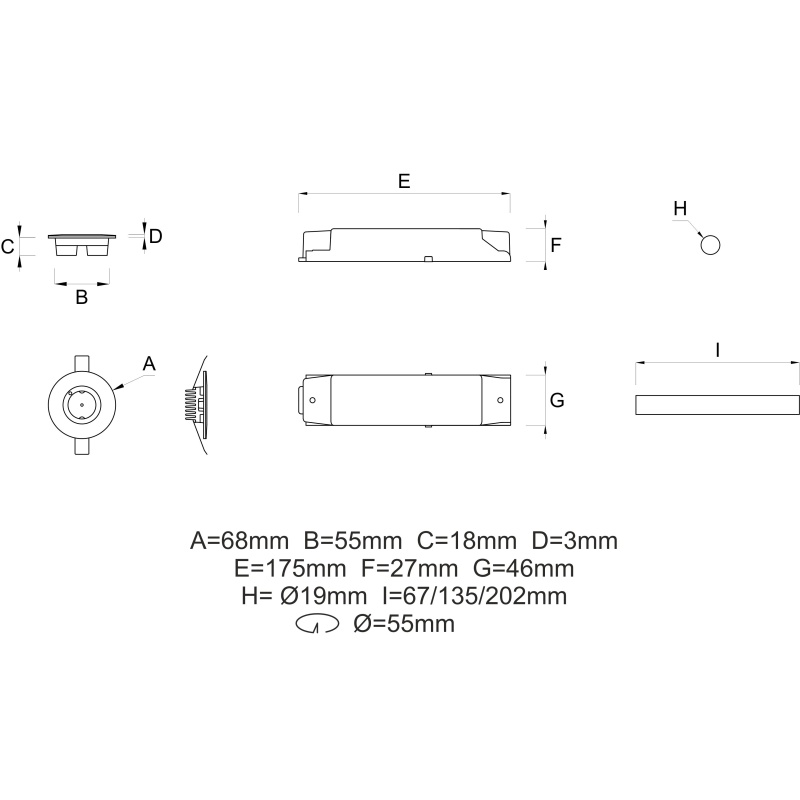

Technical drawing
